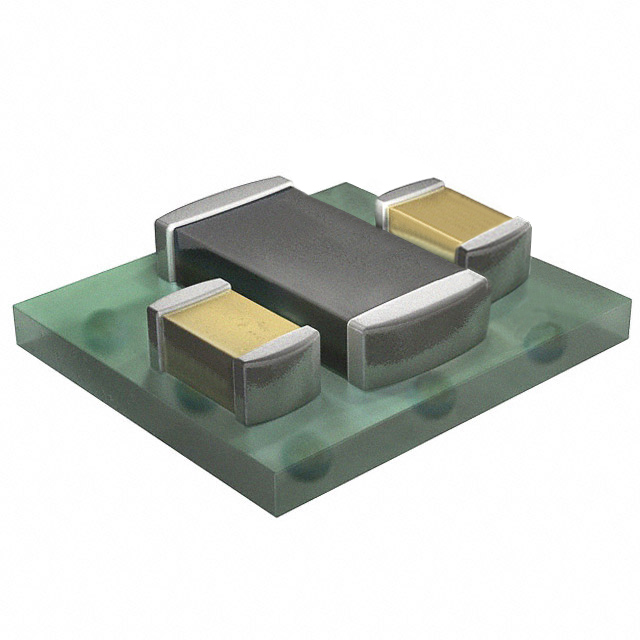

TPS826711SIPR The TPS826711SIPR from Texas Instruments is a Non-Isolated Point-of-Load (PoL) Module with a 1.8V output at 600mA. It features 90% efficiency and comes in a compact 8-uSIP surface-mount package.
Mfr Part #:

TPS826711SIPR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The TPS826711SIPR from Texas Instruments is a Non-Isolated Point-of-Load (PoL) Module with a 1.8V output at 600mA. It features 90% efficiency and comes in a compact 8-uSIP surface-mount package.
✓ Total Stock: 6,348 pcs
$ Price Range: $1.62 - $2.98

TPS826711SIPR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS826711SIPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Automotive Grade
Control Features
Current
Efficiency
Features
Height
Lead Style
Length
Mounting Type
Number of Outputs
Operating Temperature
Supplier Device Package
Tape & Reel
Type
Voltage
Width
View Similar Products (0)

TPS826711SIPR Description

Short technical summary and product information.

The TPS826711SIPR is a Non-Isolated Point-of-Load (PoL) DC-DC converter module from Texas Instruments. It provides a regulated output voltage of 1.8V with a maximum output current of 600mA, delivering up to 1W of power.



With a minimum input voltage of 2.3V, the module achieves a high efficiency of 90%. It includes protection features such as Overcurrent Protection (OCP), Overtemperature Protection (OTP), and Under-Voltage Lockout (UVLO). The module also supports remote on/off control via an enable pin (active high).



The device is housed in a compact 8-SMD module package (8-uSIP) measuring 3.0mm x 2.4mm x 1.0mm, suitable for space-constrained applications. It is designed for surface mount assembly and operates over a temperature range of -40°C to 85°C, making it suitable for commercial ITE equipment.

TPS826711SIPR Quick Information

Product Type: Non-Isolated Point-of-Load (PoL) Module
Series: TPS8267x
Canonical Name: Texas Instruments TPS826711SIPR Non-Isolated PoL Module 1.8V Output 600mA
Subcategory: DC DC Converters

TPS826711SIPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS826711SIPR Estimated Pricing

Qty Low High
1+ $2.98 $2.98
10+ $2.23 $2.23
25+ $2.05 $2.05
100+ $1.84 $1.84
250+ $1.76 $1.76
500+ $1.73 $1.73
1,000+ $1.62 $1.62
3,000+ $1.62 $1.62

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS826711SIPR Features

  • Non-Isolated PoL module with 1.8V output.
  • Delivers up to 600mA output current.
  • High efficiency of 90% typical.
  • Includes OCP, OTP, and UVLO protection.
  • Compact 8-uSIP SMD package.

TPS826711SIPR Applications

  • Ideal for powering low-voltage digital ICs.
  • Used in space-constrained portable devices.
  • Suitable for point-of-load regulation.
  • Designed for commercial ITE equipment.

TPS826711SIPR FAQs

7 frequently asked questions generated from this part’s specifications.
What are the input and output voltage ratings for the TPS826711SIPR?

Minimum input voltage is 2.3V. Nominal output voltage is 1.8V.

What is the package type of the TPS826711SIPR?

8-SMD Module (8-uSIP) measuring 3.0mm x 2.4mm x 1.0mm.

What is the operating temperature range of the TPS826711SIPR?

-40°C to 85°C.

Is the TPS826711SIPR RoHS compliant?

Reported as RoHS3 Compliant, but this is unverified and should be confirmed from the manufacturer.

What is the efficiency of the TPS826711SIPR?

90%.

What is the maximum output current of the TPS826711SIPR?

600mA.

What is the mounting type of the TPS826711SIPR?

Surface Mount.
