| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,577 pcs
|
1577 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Duty Cycle (Max) | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Topology | |
| Type | |
| Voltage | |
| Width |

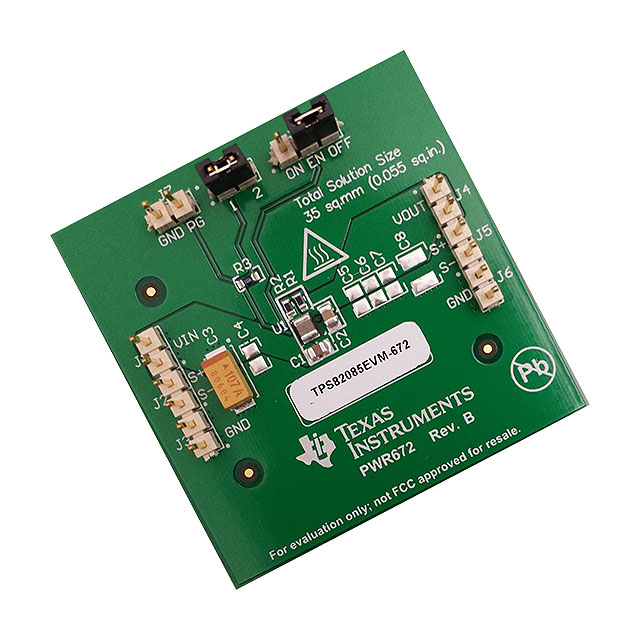

The Texas Instruments TPS82085SILT is a 3A, high-efficiency step-down converter module from the TPS82085 series. It integrates an inductor into a compact MicroSiP package (8-uSIP, 3.0mm x 2.8mm x 1.3mm), simplifying power supply design and reducing board space.
The module operates with an input voltage range from 2.5V to 6V and provides an adjustable output voltage from 0.8V to 6V, with a maximum output current of 3A. Typical efficiency is 95% and quiescent current is 17 µA. The switching frequency is between 2000 kHz and 2800 kHz. Control is via DCS-Control with constant on-time topology. Features include enable, power good, output discharge, light load efficiency, and hiccup short circuit protection.
This module is suitable for commercial ITE applications and operates over a temperature range of -40°C to 125°C. It uses a surface mount package (8-LDFN exposed pad) for effective thermal management. The device is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $5.53 | $5.53 |
| 10+ | $3.91 | $3.91 |
| 25+ | $3.69 | $3.69 |
| 100+ | $3.22 | $3.22 |
| 250+ | $3.22 | $3.22 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.5V to 6V.
The output voltage is adjustable from 0.8V to 6V.
The maximum output current is 3A.
The operating temperature range is -40°C to 125°C.
The package is 8-uSIP (MicroSiP) with dimensions 3.0mm x 2.8mm x 1.3mm.
Typical efficiency is 95%.
Switching frequency is adjustable from 2000 kHz to 2800 kHz.
