TPS7A3901DSCT The Texas Instruments TPS7A3901DSCT is a dual-channel, positive and negative low-dropout voltage regulator. It offers an adjustable output and a 150mA output current per channel.
Mfr Part #:

TPS7A3901DSCT

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS7A3901DSCT is a dual-channel, positive and negative low-dropout voltage regulator. It offers an adjustable output and a 150mA output current per channel.
✓ Total Stock: 7,249 pcs
$ Price Range: $2.94

TPS7A3901DSCT Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
6,987 pcs
On Request
6987 pcs On Request 1 On Request On Request On Request On Request On Request
Speed Components Ltd ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request 2236 On Request On Request
Braun Electronic Components ✓
Non-Authorised Inventory information
12 pcs
On Request
12 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS7A3901DSCT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Control Features
Current
Load Capacitance
Mounting Type
Noise
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Quiescent Current
Supplier Device Package
Thermal Resistance
Voltage
Voltage Dropout (Max)
View Similar Products (0)

TPS7A3901DSCT Description

Short technical summary and product information.

The TPS7A3901DSCT from Texas Instruments is a versatile dual-channel low-dropout (LDO) voltage regulator designed for positive and negative voltage regulation.



This device features an adjustable output voltage range, supporting positive outputs from 1.2V to 30V and negative outputs from -30V to 0V. Each channel can deliver up to 150mA of output current. Key electrical characteristics include a wide input voltage range of ±3.3V to ±33V, a typical dropout voltage of 0.5V at 150mA, and a high power-supply rejection ratio (PSRR) of 69dB at 120Hz. The output voltage noise is typically 21µVRMS from 10Hz to 100kHz.



Designed for ease of use, the TPS7A3901DSCT includes features such as a single positive-logic enable pin and adjustable soft-start for in-rush current control. It also offers protection features like over-temperature shutdown and under-voltage lockout (UVLO).

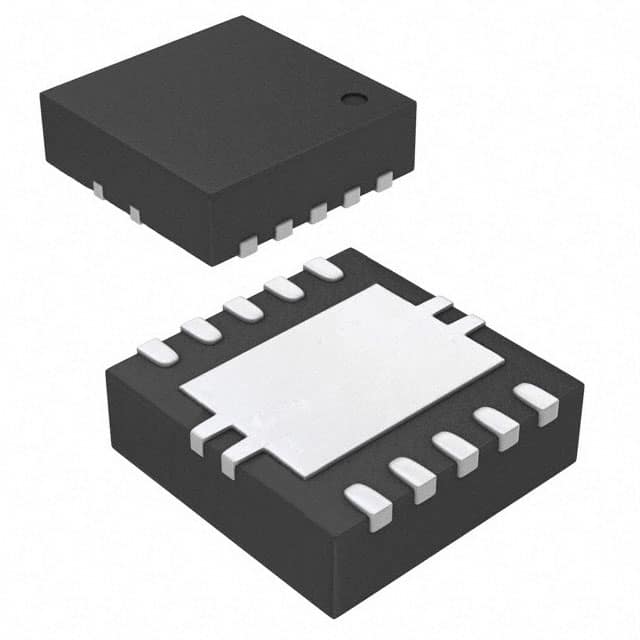

The regulator is housed in a 10-pin WSON package with a 3mm x 3mm footprint and an exposed pad for improved thermal performance. The mounting type is surface mount, and it operates within a temperature range of -55°C to 150°C.

TPS7A3901DSCT Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: TPS7A3901DSCT Dual, 150mA, Wide VIN Positive and Negative LDO Voltage Regulator
Subcategory: Low-Dropout

TPS7A3901DSCT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS7A3901DSCT Estimated Pricing

Qty Low High
1+ $2.94 $2.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS7A3901DSCT Features

  • Dual-channel positive and negative LDO regulator.
  • 150mA output current per channel.
  • Wide input voltage range: ±3.3V to ±33V.
  • Adjustable output voltage: 1.2V to 30V.
  • Low noise and high PSRR.

TPS7A3901DSCT Applications

  • Provides stable positive and negative rails.
  • Suitable for sensitive analog circuits.
  • Used in power supply designs.
  • Ideal for battery-powered devices.

TPS7A3901DSCT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output current capability of the TPS7A3901DSCT?

Each channel of the TPS7A3901DSCT can provide up to 150mA of output current.

What is the input voltage range for the TPS7A3901DSCT?

The TPS7A3901DSCT supports a wide input voltage range from ±3.3V to ±33V.

What are the adjustable output voltage ranges for the TPS7A3901DSCT?

The positive output voltage can be adjusted from 1.2V to 30V, and the negative output voltage from -30V to 0V.

What is the typical dropout voltage for the TPS7A3901DSCT?

The typical dropout voltage is 0.5V at 150mA.

What is the PSRR of the TPS7A3901DSCT?

The PSRR is 69dB at 120Hz and greater than or equal to 50dB from 10Hz to 2MHz.

What is the operating temperature range of the TPS7A3901DSCT?

The operating temperature range is -55°C to 150°C (TJ).

What package type is the TPS7A3901DSCT supplied in?

The TPS7A3901DSCT is supplied in a 10-WSON (3x3mm) package.
