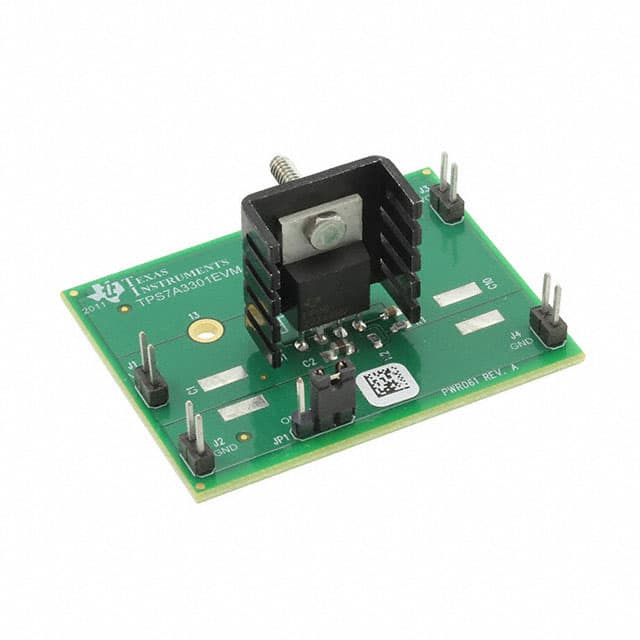

This evaluation module (EVM) from Texas Instruments, the TPS7A3301EVM-061, is designed for the engineering demonstration and evaluation of the TPS7A3301 low-dropout negative-voltage linear regulator (LDO).
The board is fully populated and designed to showcase the capabilities of the TPS7A3301. Key electrical specifications include a wide operating voltage range from -3V to -36V and a maximum current handling capability of 1A. The regulator type is negative and adjustable, allowing for flexible output voltage configuration.
This evaluation module serves as a reference design, providing setup instructions, schematic diagrams, layout and thermal guidelines, and test results. It is suitable for engineers needing to evaluate the performance and integration of the TPS7A3301 in their designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is -3V to -36V.
1A.
1 (single channel).
Negative adjustable linear regulator.
Board(s) — the module is fully populated.
Yes, it is a fully populated evaluation board.
Texas Instruments TPS7A3301.
