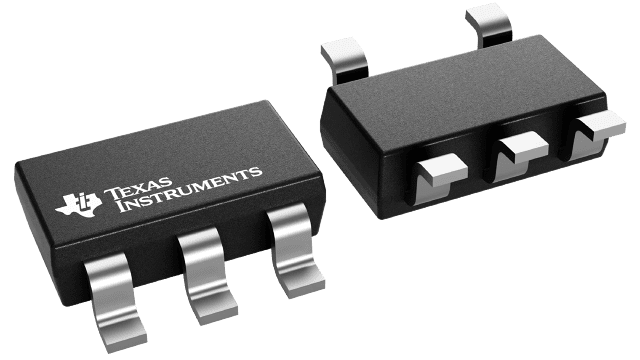

TPS78223DDCT The Texas Instruments TPS78223DDCT is a linear voltage regulator with a 5.5V maximum input voltage and a low quiescent current of 1.3 µA. It is supplied in a compact SOT-23-5 package.
Mfr Part #:

TPS78223DDCT

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS78223DDCT is a linear voltage regulator with a 5.5V maximum input voltage and a low quiescent current of 1.3 µA. It is supplied in a compact SOT-23-5 package.
✓ Total Stock: 516 pcs
$ Price Range: $0.28

TPS78223DDCT Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
266 pcs
On Request
266 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
250 pcs
On Request
250 pcs On Request 1 On Request On Request 10+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS78223DDCT Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Current
Mounting Type
Number of Regulators
Operating Temperature
Output Configuration
Output Type
PSRR
Protection Features
Supplier Device Package
Supplier Package
Tape & Reel
Tape Width
Voltage
Voltage Dropout (Max)
View Similar Products (0)

TPS78223DDCT Description

Short technical summary and product information.

The TPS78223DDCT from Texas Instruments is a linear voltage regulator designed for efficient power management. It operates with a maximum input voltage of 5.5V and features a low quiescent current of 1.3 µA, making it suitable for battery-powered applications where low power consumption is critical.



This device provides a fixed positive output and includes protection features such as over current, over temperature, and reverse polarity protection. The voltage dropout is a maximum of 0.25V at 150mA. Its PSRR is rated between 40dB and 15dB across a frequency range of 10Hz to 1kHz.



The TPS78223DDCT is housed in a SOT-23-5 Thin package, designed for surface mounting. It operates within a temperature range of -40°C to 125°C. The component is supplied on tape and reel with a standard package quantity of 250 units.

TPS78223DDCT Quick Information

Product Type: Linear Voltage Regulator
Canonical Name: TPS78223DDCT Linear Voltage Regulator
Subcategory: Linear

TPS78223DDCT Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS78223DDCT Estimated Pricing

Qty Low High
1+ $0.28 $0.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS78223DDCT Features

  • Fixed positive output voltage regulator.
  • Low quiescent current of 1.3 µA.
  • Wide operating temperature range.
  • Surface mount SOT-23-5 package.
  • Includes over current protection.

TPS78223DDCT Applications

  • Ideal for low power applications.
  • Suitable for battery operated devices.
  • Used in portable electronics.
  • Power management circuits.
  • Embedded systems.

TPS78223DDCT FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage for the TPS78223DDCT?

The TPS78223DDCT has an operating voltage of 5.5V.

What package type is the TPS78223DDCT supplied in?

The TPS78223DDCT is supplied in a SOT-23-5 Thin, TSOT-23-5 package.

What is the operating temperature range for this component?

The operating temperature range for the TPS78223DDCT is -40°C to 125°C.

Does the TPS78223DDCT have RoHS compliance?

The TPS78223DDCT is RoHS3 Compliant.

What is the quiescent current of the TPS78223DDCT?

The quiescent current for the TPS78223DDCT is 1.3 µA.

What are the protection features of the TPS78223DDCT?

The TPS78223DDCT includes Over Current, Over Temperature, and Reverse Polarity protection features.

How is the TPS78223DDCT packaged for shipping?

The TPS78223DDCT is supplied in Tape and Reel packaging with a standard package quantity of 250 units.
