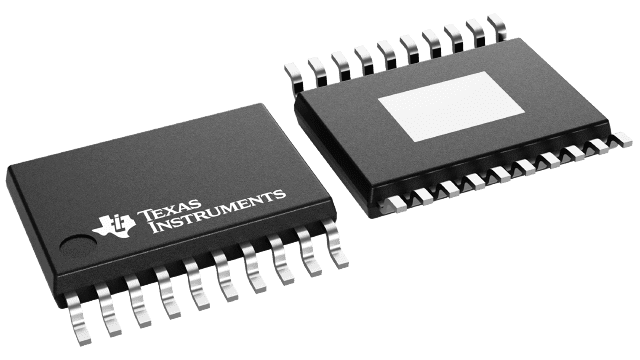

The Texas Instruments TPS76701QPWPR is a 1A low-dropout linear voltage regulator offering fast transient response and stability with low ESR capacitors. It is available in fixed output voltages and an adjustable version, with fixed options including 1.5V, 1.8V, 2.5V, 2.7V, 2.8V, 3.0V, 3.3V, and 5.0V. This regulator features a low quiescent current of typically 85 µA, making it suitable for battery-powered applications.
Key electrical characteristics include a maximum input voltage of 10V and a minimum input voltage of 2.7V. The dropout voltage is as low as 230 mV at 1A output current. The device boasts 2% accuracy for fixed-output versions and includes features like an open-drain power-on reset with a 200ms delay and thermal shutdown protection.
The TPS76701QPWPR is available in 8-pin SOIC and 20-pin TSSOP PowerPAD packages, both supporting surface mount installation. Its operating temperature range is -40°C to 125°C.
The input voltage range is 2.7V to 10V.
The maximum output current is 1 A.
The typical dropout voltage is 230 mV at 1 A output.
The operating temperature range is -40°C to 125°C.
The TPS76701QPWPR is available in HTSSOP and SOIC packages.
Yes, it includes enable and power good features.
The typical quiescent current is 85 µA.
