| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,310 pcs
|
6310 pcs | On Request | 1 | On Request | On Request | 1905+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Features | |
| Load Capacitance | |
| Operating Temperature Range | |
| PSRR | |
| Package / Case | |
| SVHC Present | |
| Thermal Resistance |

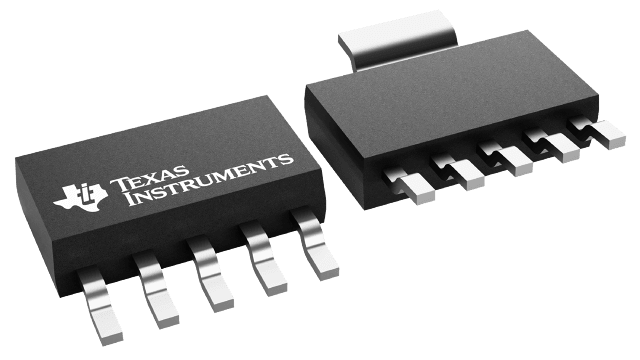

The TPS73801DCQRG4 from Texas Instruments is a high-performance, low-dropout (LDO) linear voltage regulator. It is optimized for fast transient response, making it suitable for applications requiring quick load changes.
This regulator can deliver an output current of up to 1A with a low dropout voltage of only 300mV. The output voltage is adjustable, ranging from 1.21V to 20V, providing flexibility for various power supply designs. It features low noise characteristics with 45µVRMS from 10Hz to 100kHz and a PSRR of 45dB at 100kHz.
Key features include enable functionality, reverse current protection, and reverse voltage protection, enhancing circuit reliability. The device operates over a wide temperature range of -40°C to 125°C. It is stable with a minimum load capacitance of 10µF and is compatible with ceramic capacitors.
The TPS73801DCQRG4 is supplied in a SOT-223 package, measuring 45.89 mm². This package is suitable for surface-mount applications.
The maximum input voltage is 20 V.
The maximum output current is 1 A.
The typical dropout voltage is 300 mV.
The output voltage can be adjusted from 1.21 V to 20 V.
The noise level is 45 µVRMS from 10Hz to 100kHz.
The operating temperature range is -40°C to 125°C.
It is supplied in a SOT-223 package.
