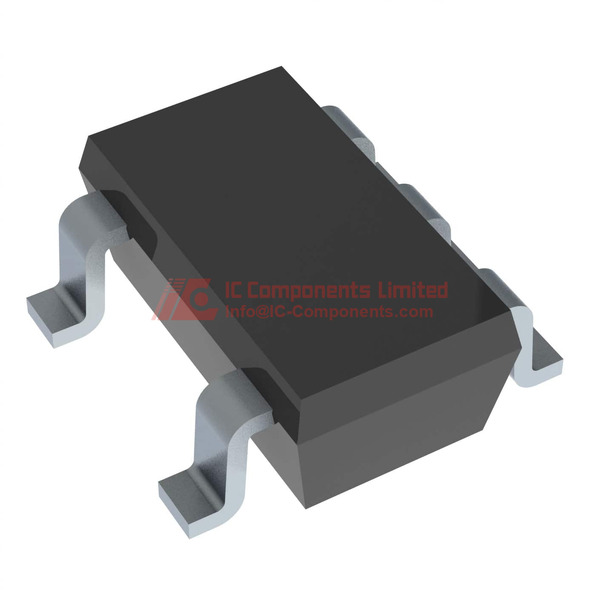

TPS73233DBVRG4 The Texas Instruments TPS73233DBVRG4 is a linear voltage regulator providing a fixed 3.3V output at up to 250mA. It is housed in a compact SOT-23-5 package.
Mfr Part #:

TPS73233DBVRG4

Available from 1 distributors
Mfr Name: VBsemi
VBsemi
The Texas Instruments TPS73233DBVRG4 is a linear voltage regulator providing a fixed 3.3V output at up to 250mA. It is housed in a compact SOT-23-5 package.
✓ Total Stock: 34,333 pcs

TPS73233DBVRG4 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
34,333 pcs
On Request
34333 pcs On Request 1 On Request On Request 19+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS73233DBVRG4 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Control Features
Mounting Type
Operating Temperature
Output Current
Output Voltage
PSRR
Package / Case
Protection Features
Supplier Device Package
Supply Current
View Similar Products (0)

TPS73233DBVRG4 Description

Short technical summary and product information.

The Texas Instruments TPS73233DBVRG4 is a high-performance linear voltage regulator designed for various applications requiring a stable 3.3V output. It can deliver up to 250mA of current with a low dropout voltage of 0.15V at 250mA, ensuring efficient power delivery.



Key electrical characteristics include a maximum input voltage of 5.5V, a quiescent current of 550µA, and a supply current of 950µA. The regulator features robust protection mechanisms, including over current, over temperature, short circuit, and reverse polarity protection, enhancing system reliability. It also offers a Power Supply Rejection Ratio (PSRR) ranging from 58dB to 37dB across a frequency range of 100Hz to 10kHz.



This device operates within a temperature range of -40°C to 125°C and is available in a surface-mount SOT-23-5 package, suitable for space-constrained designs. The enable control feature allows for easy integration into power management schemes. The component is supplied in tape and reel packaging for automated assembly processes.

TPS73233DBVRG4 Quick Information

Product Type: Linear Voltage Regulator
Series: TPS73233
Canonical Name: Texas Instruments TPS73233DBVRG4 Linear Voltage Regulator
Subcategory: Linear, Low Drop Out (LDO) Regulators

TPS73233DBVRG4 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

TPS73233DBVRG4 Features

  • Fixed 3.3V output voltage.
  • 250mA maximum output current.
  • Low 0.15V dropout voltage.
  • Over current and over temperature protection.
  • SOT-23-5 surface mount package.

TPS73233DBVRG4 Applications

  • Power management circuits.
  • Portable electronic devices.
  • Battery-powered systems.
  • Low power applications.

TPS73233DBVRG4 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the output voltage of the TPS73233DBVRG4?

The output voltage is fixed at 3.3V.

What package is the TPS73233DBVRG4 available in?

It is available in SC-74A, SOT-753 (SOT-23-5) package.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What is the maximum output current?

The maximum output current is 250mA.

What is the dropout voltage?

The dropout voltage is 0.15V at 250mA load.

What protection features does the TPS73233DBVRG4 include?

It includes over current, over temperature, short circuit, and reverse polarity protection.

Does the device have an enable pin?

Yes, it has an enable control feature.
