| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
361,600 pcs
|
361600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
5,628 pcs
|
5628 pcs | On Request | 1 | On Request | On Request | 08+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Accuracy | |
| Lead Style | |
| Load Capacitance | |
| Mounting Type | |
| Noise | |
| Operating Temperature | |
| Output Current | |
| PSRR | |
| Quiescent Current | |
| SVHC Present | |
| Tape & Reel |
The TPS715A33DRBRG4 from Texas Instruments is a low-dropout (LDO) linear voltage regulator designed for battery-powered applications and power management. It features a wide input voltage range from 2.5 V to 24 V and supports output currents up to 80 mA.
This regulator boasts a very low quiescent current of 3.2 µA at an 80-mA load, contributing to extended battery life. It offers adjustable output voltages from 1.205 V to 15 V, as well as fixed output options including 1.2 V, 1.8 V, 3 V, 3.3 V, and 15 V. The device operates within a temperature range of -40°C to 125°C.

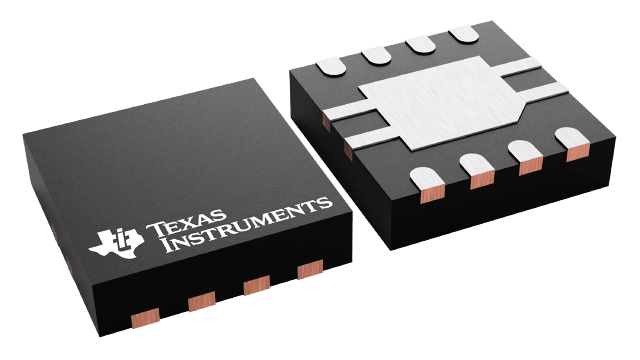

Available in compact VSON (DRB) and WSON (DRV) packages, the TPS715A33DRBRG4 is suitable for space-constrained designs. It includes overcurrent protection for enhanced reliability. The regulator provides a typical accuracy of 4% and a typical dropout voltage of 670 mV.
Key electrical characteristics include a typical noise level of 575 µVrms and a PSRR of 42 dB at 100 KHz. The minimum load capacitance required is 0.47 µF. This component is well-suited for applications requiring stable and efficient voltage regulation with minimal power consumption.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.54 | $0.54 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.5 V to 24 V.
The output voltage can be adjusted from 1.205 V to 15 V, or fixed at 1.2 V, 1.8 V, 3 V, 3.3 V, or 15 V.
The TPS715A33DRBRG4 is available in VSON (DRB) and WSON (DRV) packages, with dimensions of 3 mm x 3 mm and 2 mm x 2 mm respectively.
The operating temperature range is -40°C to 125°C.
The maximum output current is 80 mA.
The typical dropout voltage is 670 mV at full load.
The typical quiescent current is 3.2 µA at 80 mA load.
