Mfr Part #:

TPS65950A3ZXNR

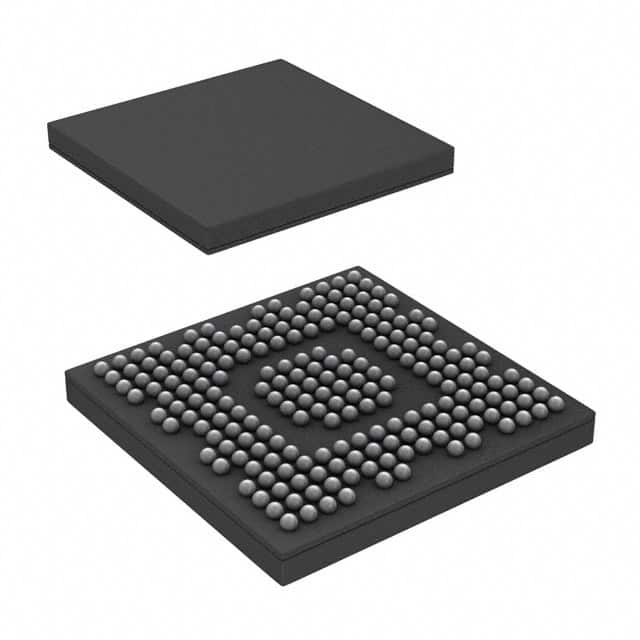

The Texas Instruments TPS65950A3ZXNR is an integrated power management and audio codec IC. It features multiple DC/DC converters, LDOs, and audio capabilities.

✓ Total Stock: 9,819 pcs

$ Price Range: $6.50

TPS65950A3ZXNR Available from 3 distributors

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Romaks Technologies ✓ Non-Authorised Inventory information	6,457 pcs On Request	6457 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request
Smaxon Electronics ✓ Non-Authorised Inventory information	1,831 pcs On Request	1831 pcs	On Request	1	On Request	On Request	1231+	On Request	On Request
Xingangxin ✓ Non-Authorised Inventory information	1,531 pcs On Request	1531 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TPS65950A3ZXNR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Power Management - Specialized
Manufacturer Name	Texas Instruments
Applications	Mobile/OMAP™
Mounting Type	Surface Mount
Operating Temperature	-40°C / 85°C
Supplier Device Package	209-NFBGA
Voltage	2.7V ~ 4.5V

View Similar Products (0)

TPS65950A3ZXNR Description

Short technical summary and product information.

The Texas Instruments TPS65950A3ZXNR is a highly integrated power-management and audio codec IC designed to support OMAP™ application processors. This device combines power management functions with an audio codec, a USB high-speed transceiver, an AC/USB charger, LED drivers, an analog-to-digital converter (ADC), and a real-time clock (RTC).

The power management section includes three efficient step-down converters (VDD1 up to 1.4A, VDD2 at 600mA, VIO at 700mA) and ten external linear LDOs. It also features SmartReflex™ Dynamic Voltage Management.

For audio, the TPS65950A3ZXNR offers a 15-bit linear codec, differential microphone inputs, headset microphone input, auxiliary/FM input, and differential speaker and headset drivers. It supports PCM and TDM interfaces, Bluetooth connectivity, and includes a 16-bit stereo DAC and ADC with various sample rates.

Additional features include USB 2.0 OTG-compliant HS transceivers, a charger for Li-ion and other battery types, LED drivers, a 10-bit ADC with multiple inputs, RTC, and 19 GPIO devices. The device operates over a temperature range of -40°C to 85°C and is supplied in a 209-NFBGA package suitable for surface mounting.

TPS65950A3ZXNR Quick Information

Product Type: Integrated Power Management IC (PMIC)

Canonical Name: Texas Instruments TPS65950A3ZXNR Integrated Power Management and Audio Codec

Subcategory: Specialized

TPS65950A3ZXNR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TPS65950A3ZXNR Estimated Pricing

Qty	Low	High
1+	$6.50	$6.50

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS65950A3ZXNR Features

Integrated power management and audio codec.
Three efficient step-down converters.
Ten external linear LDOs.
15-bit linear audio codec with stereo DAC/ADC.
USB 2.0 OTG-compliant HS transceivers.

TPS65950A3ZXNR Applications

Ideal for smartphone power management.
Suitable for OMAP application processors.
Supports advanced audio processing needs.
Enables USB high-speed connectivity.
Used in mobile and handheld systems.
