| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,218 pcs
|
8218 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,620 pcs
|
3620 pcs | On Request | 1 | On Request | On Request | 22+ | On Request | On Request | |
|
2,645 pcs
|
2645 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,711 pcs
|
1711 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Automotive Grade | |
| Current | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Supplier Device Package | |
| Tape & Reel | |
| Voltage |
The TPS65930A2ZCH from Texas Instruments is a versatile Integrated Power Management IC (PMIC) tailored for applications utilizing OMAP processors. This device integrates three efficient step-down DC/DC converters and four external linear LDOs, providing a total of seven regulated outputs to manage power for various system components.
Key electrical specifications include an input voltage range of 2.7V to 5.5V and an output voltage range from 0.6V to 3.15V, with a maximum output current of 1.2A. The PMIC operates at a typical switching frequency of 3200 kHz. It also includes features such as communication control and power sequencing capabilities, enhancing system stability and management.
Designed for modern mobile and embedded systems, the TPS65930A2ZCH incorporates an Audio Codec with a 16-bit stereo DAC and ADC, supporting various sampling rates. Additionally, it features USB 2.0 On-the-Go (OTG)-compliant High-Speed Transceivers, a 12-bit Universal Transceiver Macro Interface (ULPI), and a 5-V charge pump for VBUS power supply. Additional features include LED drivers, MADC inputs, and an HS I2C serial control interface.

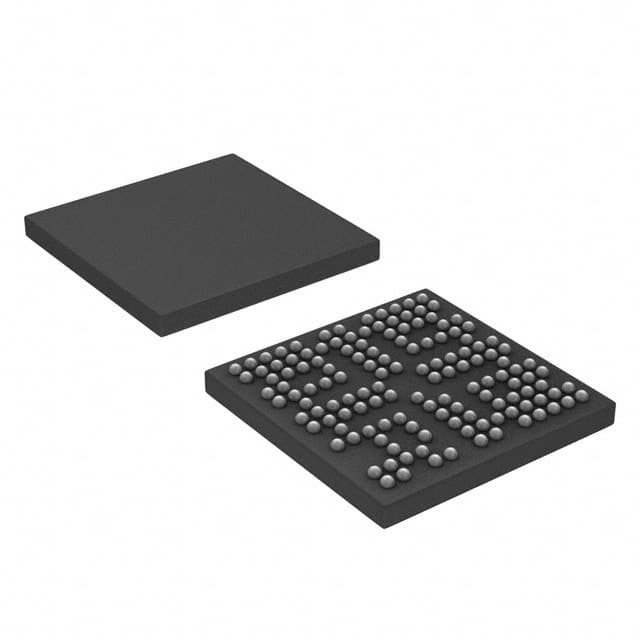

The component is housed in a 139-NFBGA (10x10) package, suitable for surface mounting. It operates within an industrial temperature range of -40°C to 85°C, ensuring reliability in diverse environmental conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $6.33 | $6.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.7 V to 5.5 V.
0.6 V to 3.15 V.
1.2 A.
3200 kHz typical.
-40°C to 85°C.
7 regulated outputs (3 step-down converters and 4 LDOs).
139-NFBGA (10x10) and 139-LFBGA, surface mount.
