The Texas Instruments TPS65917-Q1 is a versatile Power Management Integrated Circuit (PMIC) specifically designed for automotive applications, often used with processors like Jacinto DRA7x. This device integrates multiple power rails, featuring 5 buck converters and 5 LDOs to provide a comprehensive power solution.
With an input voltage range of 3.15 V to 5.25 V and a maximum output current of 7 A, the TPS65917-Q1 is suitable for demanding applications. It operates across an automotive temperature range of -40°C to 105°C and supports factory programmable or software configurable settings for flexibility.
The PMIC includes essential features such as communication control, I2C control, power good indication, and power sequencing capabilities. It is AEC-Q100 qualified, ensuring reliability for automotive environments. The device is available in a 48-pin VQFN package measuring 7 mm x 7 mm.
Key electrical characteristics include a typical switching frequency of 2.2 MHz, a maximum switching frequency of 2.7 MHz, and low power consumption modes. The TPS65917-Q1 is designed to meet functional safety requirements, making it a robust choice for safety-critical automotive systems.
The input voltage range is 3.135V to 5.25V.

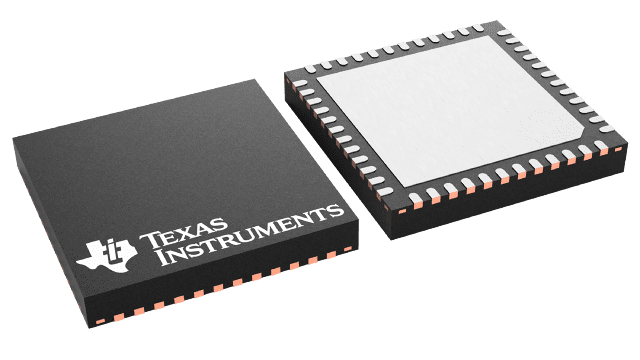

The TPS65917-Q1 is available in a 48-pin VQFN package measuring 7mm x 7mm (49mm²).
-40°C to 105°C.
Up to 7A.
2.2MHz, with a maximum of 2.7MHz.
Yes, it is factory programmable and software configurable via I2C control.
Communication control, I2C control, power good, and power sequencing.
