TPS659122YFFR The Texas Instruments TPS659122YFFR is a Power Management IC (PMIC) featuring 4 DC/DC converters, 10 LDOs, and 3 LED outputs. It operates within a voltage range of 0.8V to 5.5V.
Mfr Part #:

TPS659122YFFR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS659122YFFR is a Power Management IC (PMIC) featuring 4 DC/DC converters, 10 LDOs, and 3 LED outputs. It operates within a voltage range of 0.8V to 5.5V.
✓ Total Stock: 23,630 pcs
$ Price Range: $3.67

TPS659122YFFR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
16,436 pcs
On Request
16436 pcs On Request 1 On Request On Request On Request On Request On Request
Rayichip ✓
Non-Authorised Inventory information
6,177 pcs
On Request
6177 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
1,017 pcs
On Request
1017 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS659122YFFR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Mounting Type
Operating Temperature
Output Current
Output Voltage
Storage Temperature
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

TPS659122YFFR Description

Short technical summary and product information.

The Texas Instruments TPS659122YFFR is a versatile Power Management IC (PMIC) designed for processor power management. This device integrates multiple power rails, including 4 DC/DC converters, 10 LDOs, and 3 LED outputs, providing a comprehensive power solution.



Key electrical specifications include an input voltage range of 0.8V to 5.5V, with a maximum output current capability of 2.5A. The PMIC operates with a typical quiescent current of 0.008mA and features a switching frequency of up to 2800 kHz. It also includes features like dynamic voltage scaling, power save mode, and thermal monitoring.

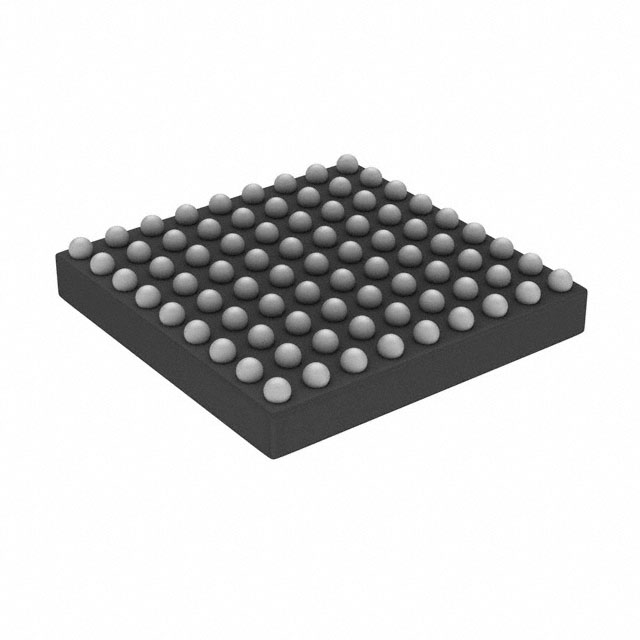

The TPS659122YFFR is housed in an 81-DSBGA package, suitable for surface mount applications. It operates across a temperature range of -40°C to 85°C, making it suitable for various environmental conditions.



This PMIC is designed for applications requiring multiple regulated voltage rails, commonly found in processor-based systems. Its integrated nature helps reduce component count and board space.

TPS659122YFFR Quick Information

Product Type: Power Management IC (PMIC)
Canonical Name: Power Management IC (PMIC)
Subcategory: Power Management - Specialized

TPS659122YFFR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS659122YFFR Estimated Pricing

Qty Low High
1+ $3.67 $3.67

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS659122YFFR Features

  • Integrates 4 DC/DCs and 10 LDOs.
  • Supports 0.8V to 5.5V input voltage.
  • Provides up to 2.5A output current.
  • Operates from -40°C to 85°C.
  • Packaged in 81-DSBGA for surface mounting.

TPS659122YFFR Applications

  • Ideal for processor power management.
  • Suitable for multi-rail power systems.
  • Used in embedded computing applications.
  • Enables compact power supply designs.

TPS659122YFFR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TPS659122YFFR?

0.8 V to 5.5 V.

What is the output voltage range?

0.5 V to 3.8 V.

What is the maximum output current?

2.5 A.

How many regulated outputs does the TPS659122YFFR have?

14 regulated outputs: 4 step-down DC/DC converters and 10 LDOs.

What is the operating temperature range?

-40°C to 85°C.

What package is the TPS659122YFFR available in?

81-UFBGA, DSBGA (81-DSBGA 3.6x3.6).
