TPS659113A2ZRCR
Texas Instruments
The Texas Instruments TPS659113A2ZRCR is an integrated power management IC designed for portable equipment. It features multiple DC-DC converters, LDOs, and an I2C interface.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Voltage | |
| Watchdog Timer |
The TPS6591102A2ZRC from Texas Instruments is a specialized integrated power management IC (PMIC) designed for portable equipment. This device is suitable for applications powered by single Li-Ion or Li-Ion polymer battery cells, 3-series Ni-MH cells, or a 5-V input, requiring multiple power rails.
Key features include three efficient step-down DC-DC converters, one controller for external FETs, and eight LDO voltage regulators. It supports dynamic voltage scaling for processor cores via a high-speed I2C interface. The PMIC also incorporates a real-time clock (RTC) resource, configurable GPIOs, thermal shutdown protection, and a watchdog timer.

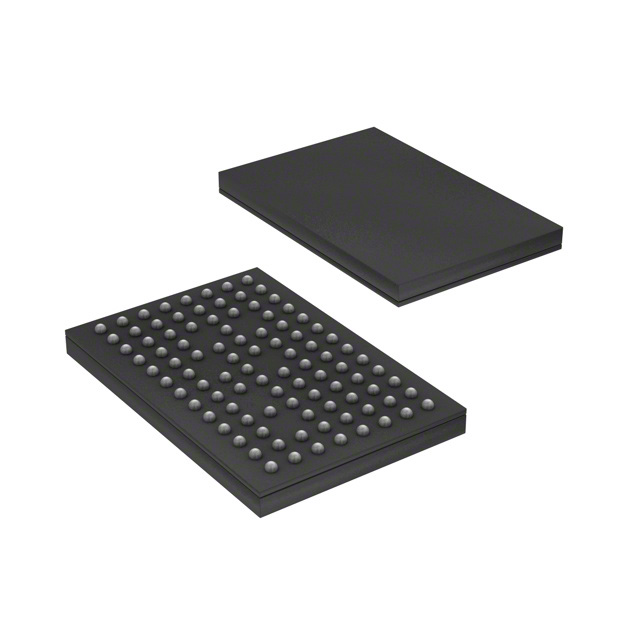

This PMIC is available in a 98-BGA MICROSTAR JUNIOR (9x6) package and is surface-mountable. It operates within a temperature range of -40°C to 85°C and has a supply voltage range of 2.7V to 5.5V.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.7V to 5.5V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 98-VFBGA package.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
There are three DC-DC converters.
There are eight LDO voltage regulators.
