TPS65835RKPR The Texas Instruments TPS65835RKPR is an advanced power management IC designed for active shutter 3D glasses. It features an integrated MSP430 core and operates within a voltage range of 2.5V to 6.4V.
Mfr Part #:

TPS65835RKPR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS65835RKPR is an advanced power management IC designed for active shutter 3D glasses. It features an integrated MSP430 core and operates within a voltage range of 2.5V to 6.4V.
✓ Total Stock: 33,196 pcs
$ Price Range: $2.06

TPS65835RKPR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
21,896 pcs
On Request
21896 pcs On Request 1 On Request On Request 16+ On Request On Request
Romaks Technologies ✓
Non-Authorised Inventory information
11,300 pcs
On Request
11300 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS65835RKPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Current
Mounting Type
Number of Pins
Operating Temperature
Supplier Device Package
Voltage
View Similar Products (0)

TPS65835RKPR Description

Short technical summary and product information.

The Texas Instruments TPS65835RKPR is a specialized Power Management IC (PMIC) featuring an integrated MSP430 core, making it suitable for applications like active shutter 3D glasses. This device operates within a voltage range of 2.5V to 6.4V and has an operating temperature range of -40°C to 85°C.



Key features include a power management core with a linear charger, a low-dropout regulator (LDO), and a power boost converter with an adjustable output voltage from 8V to 16V. The integrated MSP430 core offers ultralow power consumption in various modes, including active, standby, and off modes with RAM retention. It also includes a 16-bit RISC architecture, 16-kB Flash memory, and a 10-bit 200-ksps Analog-to-Digital Converter (ADC).

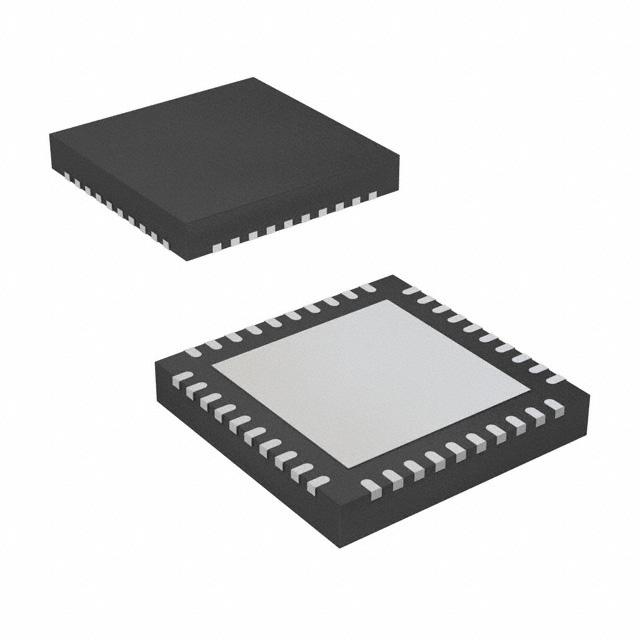

The TPS65835RKPR comes in a 40-VQFN (5x5) exposed pad package, suitable for surface mounting. It is supplied on a tape and reel with a standard package quantity of 3000 units. The device is RoHS3 compliant and REACH unaffected, with a Moisture Sensitivity Level (MSL) of 1.

TPS65835RKPR Quick Information

Product Type: Power Management IC (PMIC)
Canonical Name: TPS65835RKPR Advanced Power Management IC (PMIC) with Integrated MSP430 for Active Shutter 3D Glasses
Subcategory: Specialized PMIC

TPS65835RKPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS65835RKPR Estimated Pricing

Qty Low High
1+ $2.06 $2.06

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS65835RKPR Features

  • Advanced PMIC with integrated MSP430 core.
  • Suitable for active shutter 3D glasses.
  • Adjustable boost converter output voltage.
  • Low power consumption in multiple modes.
  • 40-VQFN surface mount package.

TPS65835RKPR Applications

  • Power management for active shutter 3D glasses
  • Integrated linear charger for battery charging
  • Boost converter drives LCD shutter lenses
  • MSP430 core controls shutter synchronization

TPS65835RKPR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the operating voltage range of the TPS65835RKPR?

The operating voltage range is 2.5V to 6.4V.

What package is the TPS65835RKPR available in?

The TPS65835RKPR is available in a 40-pin VQFN (RKP) surface mount package.

What is the operating temperature range of the TPS65835RKPR?

The operating temperature range is -40°C to 85°C.

What is the current consumption of the TPS65835RKPR in typical modes?

In active mode, typical current consumption is 280 µA at 1 MHz and 2.2V. In standby mode it is 0.5 µA, and in off mode with RAM retention it is 0.1 µA.

Does the TPS65835RKPR include an ADC?

It has a 10-bit ADC with a sample rate of 200 ksps.

What voltage can the integrated boost converter output?

The power boost converter's output voltage is adjustable from 8V to 16V.

How much flash memory does the TPS65835RKPR contain?

It integrates 16kB of flash memory.
