TPS65250RHAR The Texas Instruments TPS65250RHAR is a high-efficiency, synchronous step-down buck converter featuring three independent channels. It offers a wide input voltage range and adjustable output.
Mfr Part #:

TPS65250RHAR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS65250RHAR is a high-efficiency, synchronous step-down buck converter featuring three independent channels. It offers a wide input voltage range and adjustable output.
✓ Total Stock: 14,419 pcs

TPS65250RHAR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
10,086 pcs
On Request
10086 pcs On Request 1 On Request On Request 14+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
2,500 pcs
On Request
2500 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
1,833 pcs
On Request
1833 pcs On Request 1 On Request On Request 14+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS65250RHAR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Input Voltage
Mounting Type
Number of Pins
Operating Temperature
Output Voltage
Package / Case
View Similar Products (0)

TPS65250RHAR Description

Short technical summary and product information.

The TPS65250RHAR from Texas Instruments is a versatile three-channel synchronous step-down buck converter designed for high-efficiency power management applications. It supports a wide input supply voltage range from 4.5 V to 18 V, making it suitable for various system voltages.



Each converter channel offers adjustable output voltage down to 0.8 V with 1% accuracy. Buck 1 can handle a continuous load of 3 A and a maximum current of 3.5 A, while Buck 2 and Buck 3 support 2 A continuous load and 2.5 A maximum current. The switching frequency is adjustable from 300 kHz to 2.2 MHz, allowing for optimization of component size and efficiency. Features like soft start, adjustable current limit, power good, and reset generation simplify system design.

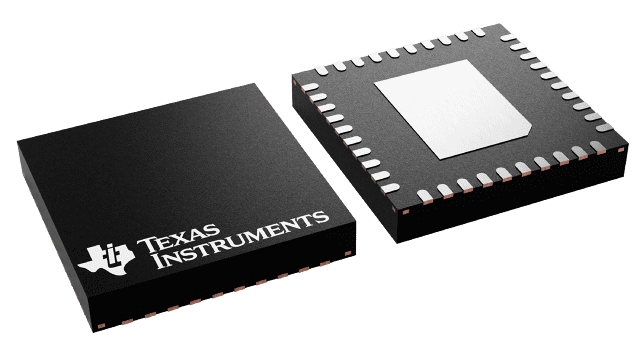

The device is available in a 40-pin, 6 mm x 6 mm QFN (RHA) package, suitable for surface mount applications. Its integrated power transistors and current-mode control with simple compensation circuitry reduce external component count. The TPS65250 also includes a unique storage and release circuit optimized for dying gasp mode, reducing storage capacitance requirements.



Applications for the TPS65250RHAR include xDSL/xPON modems, cable modems, power line modems, home gateways, access point networks, wireless routers, and set-top boxes, where efficient and flexible power conversion is required.

TPS65250RHAR Quick Information

Product Type: Buck Converter
Canonical Name: TPS65250 Three-Channel Synchronous Step-Down Buck Converter
Subcategory: Buck Converter

TPS65250RHAR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS65250RHAR Features

  • Three synchronous step-down buck converters.
  • Wide 4.5V to 18V input voltage range.
  • Up to 3A continuous output current.
  • Adjustable switching frequency 300kHz-2.2MHz.
  • Integrated power transistors and QFN package.

TPS65250RHAR Applications

  • Suitable for xDSL/xPON modems.
  • Used in cable modem applications.
  • Ideal for home gateway power.
  • Supports wireless router designs.
  • Applicable to set-top boxes.

TPS65250RHAR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TPS65250RHAR?

The input voltage range is 4.5 V to 18 V.

What output currents can each buck channel provide?

Buck1 provides 3 A continuous (3.5 A maximum), Buck2 and Buck3 each provide 2 A continuous (2.5 A maximum).

What is the package size and type?

The device is in a 40-pin 6 mm x 6 mm VQFN package with surface mount mounting.

Over what temperature range can this device operate?

The operating junction temperature range is -40°C to 125°C.

Is the switching frequency adjustable?

Yes, the switching frequency is adjustable from 300 kHz to 2.2 MHz using an external resistor.

What is the reference voltage accuracy?

The reference voltage is 0.8 V with ±1% accuracy.
