| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32,000 pcs
|
32000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Junction Temperature | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Pins | |
| Operating Temperature Range |
The TPS65150QPWPRQ1 from Texas Instruments is an automotive-qualified power supply IC designed for compact LCD bias applications. It integrates a VCOM buffer and supports gate voltage shaping, making it suitable for displays ranging from 7 to 13 inches.
This device features a boost converter capable of generating positive voltages up to 15V and charge pump drivers for positive voltages up to 30V and negative voltages down to -15V. The input voltage range is 1.8V to 6V, with a switch current limit of 2A and output voltage accuracy of less than 1%. It also includes adjustable power-on sequencing and fault detection features.

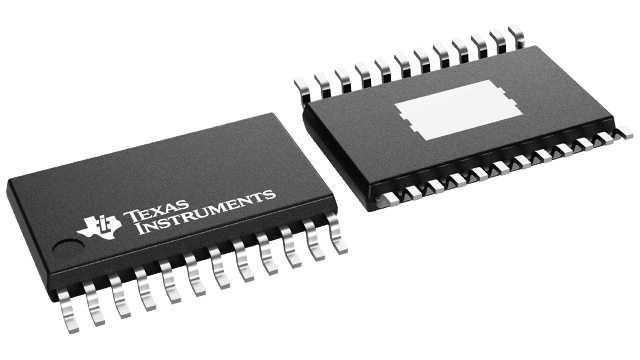

The TPS65150QPWPRQ1 is housed in a 24-pin HTSSOP package with an exposed thermal pad, designed for surface mounting. Its operating temperature range is -40°C to 125°C, ensuring reliability in demanding automotive environments.
The input voltage range is 1.8 V to 6 V.
It supports a boost converter output up to 15 V, a positive regulated charge pump driver up to 30 V, and a negative regulated charge pump driver down to -15 V.
The operating temperature range is -40°C to 125°C.
It is supplied in a 24-pin HTSSOP (PWP) package.
The switch current limit is 2 A.
