TPS65132T6YFFR
Texas Instruments
The Texas Instruments TPS65132T6YFFR is a split-rail, single inductor dual output converter designed for LCD and OLED displays. It operates from a 2.5V to 5.5V input voltage.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
600 pcs
|
600 pcs | On Request | 1 | On Request | On Request | 1449+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Display Type | |
| Input Voltage | |
| Interface | |
| Mounting Type | |
| Operating Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Voltage |

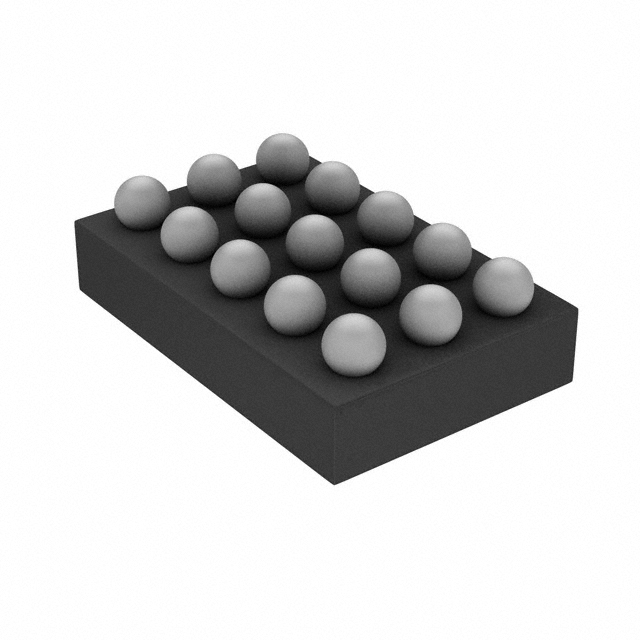

The Texas Instruments TPS65132L0YFFR is an integrated circuit designed for driving LCD and OLED displays. This split-rail, single-inductor dual-output converter provides both positive and negative output voltages, making it suitable for various display applications.
Key electrical specifications include an input voltage range of 2.5V to 5.5V. The positive output voltage can be boosted from 4V to 6V, while the negative output voltage is an inverting buck-boost from -6V to -4V. It supports a maximum output current of 150mA and offers high combined efficiency, exceeding 85% at loads above 10mA and 90% above 40mA. The output voltage accuracy is within 1% over the full temperature range.
This device features an I2C interface for control and communication, enabling programmable power-up/-down sequencing options. It is available in a compact 15-DSBGA package, suitable for surface mounting. The operating temperature range is -40°C to 85°C, ensuring reliable performance in various environments.
Applications for the TPS65132L0YFFR include power solutions for displays ranging from 7 inches to 13 inches, commonly found in portable electronics and other devices requiring precise display bias.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.41 | $0.41 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.5V to 5.5V.
Positive output from 4V to 6V and negative output from -6V to -4V, both adjustable in 0.1V steps.
150 mA.
Via I2C interface.
-40°C to 85°C.
15-UFBGA / DSBGA (15-DSBGA), surface mount.
