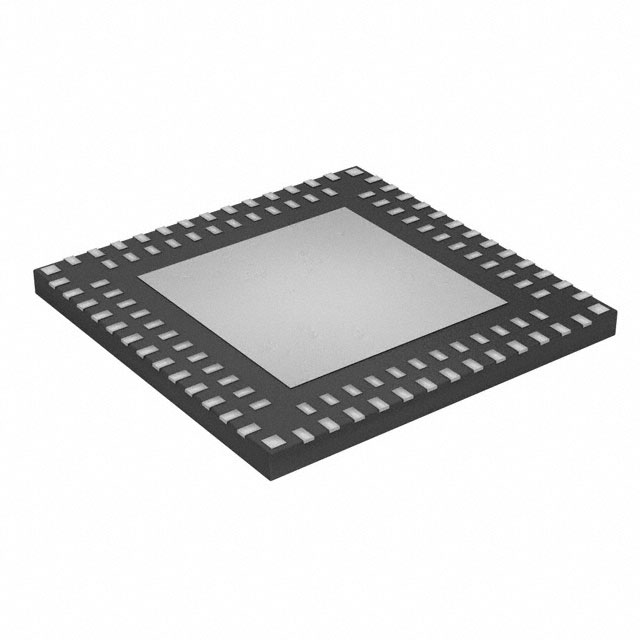

TPS65090ARVNR The Texas Instruments TPS65090ARVNR is a Power Management IC designed for battery charging applications. It supports 2-3 cell Lithium Ion/Polymer batteries.
Mfr Part #:

TPS65090ARVNR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS65090ARVNR is a Power Management IC designed for battery charging applications. It supports 2-3 cell Lithium Ion/Polymer batteries.
✓ Total Stock: 13,767 pcs
$ Price Range: $7.92

TPS65090ARVNR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
10,044 pcs
On Request
10044 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,523 pcs
On Request
3523 pcs On Request 1 On Request On Request 13+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
200 pcs
On Request
200 pcs On Request 1 On Request On Request 1310+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS65090ARVNR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Battery Chemistry
Charge Current
Current
Interface
Mounting Type
Number of Cells
Operating Temperature
Output Current
Supplier Device Package
Tape & Reel
Voltage
View Similar Products (0)

TPS65090ARVNR Description

Short technical summary and product information.

The Texas Instruments TPS65090ARVNR is a versatile Power Management IC (PMIC) designed for applications requiring efficient battery charging and power control. It supports input voltages ranging from 6V to 17V and provides multiple regulated outputs, including 3 step-down DC/DC converters and 2 always-on LDOs.



Key electrical features include a maximum output current of 5A, an I²C interface for configuration, and a charge current capability of up to 4A. The device operates within a temperature range of -40°C to 85°C. It also incorporates 7 current-limited load switches for flexible power path management.



This PMIC is housed in a 100-VQFN-MR (9x9) package and is designed for surface mount applications. The TPS65090ARVNR is suitable for systems needing robust power management for 2 to 3 cell Lithium Ion/Polymer battery configurations.

TPS65090ARVNR Quick Information

Product Type: Power Management IC
Series: TPS65090
Canonical Name: Texas Instruments TPS65090ARVNR Power Management IC
Subcategory: Power Management IC

TPS65090ARVNR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS65090ARVNR Estimated Pricing

Qty Low High
1+ $7.92 $7.92

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS65090ARVNR Features

  • Supports 6V to 17V input voltage.
  • Provides 3 step-down converters.
  • Includes 2 always-on LDOs.
  • Features 7 current-limited load switches.
  • Operates from -40°C to 85°C.

TPS65090ARVNR Applications

  • Ideal for battery charging systems.
  • Suitable for 2-3 cell Li-Ion batteries.
  • Used in power management applications.
  • Supports flexible output voltage regulation.

TPS65090ARVNR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

6V to 17V.

What is the output voltage range?

1V to 5V.

What is the maximum output current?

5A.

What battery chemistries are supported?

Lithium Ion/Polymer.

How many cells can it charge?

2 to 3 cells.

What is the operating temperature range?

-40°C to 85°C.

What package is it available in?

100-VQFN Dual Rows, Exposed Pad (9x9mm).
