| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
22,600 pcs
|
22600 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Efficiency | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments TPS63070RNMT is a high-efficiency buck-boost converter designed for applications where the input voltage can be higher or lower than the output voltage. It offers a wide input voltage range from 2V to 16V and an adjustable output voltage range from 2.5V to 9V.
This converter can deliver up to 2A of output current in both buck and boost modes. It achieves up to 95% efficiency and features a typical quiescent current of 50 µA, making it suitable for power-sensitive applications. The device operates at a fixed switching frequency of 2.4 MHz and includes features like synchronous rectification for improved efficiency.

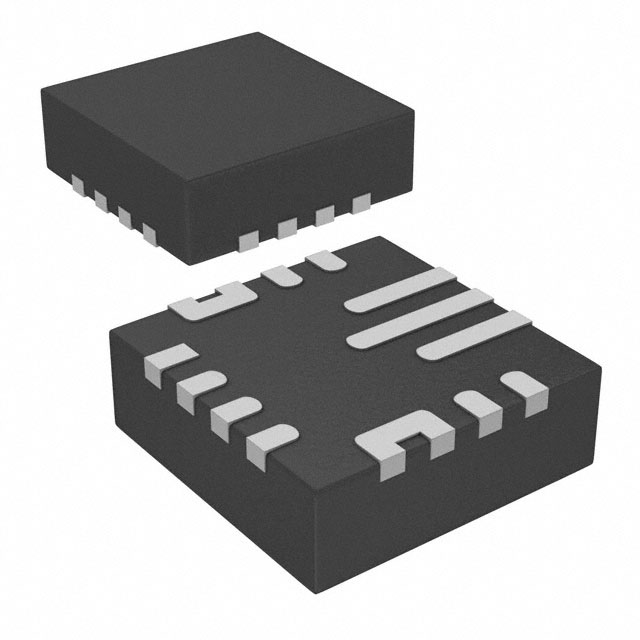

The TPS63070RNMT is available in a 15-VQFN-HR package, measuring 3mm x 2.5mm, and is designed for surface mount applications. Its adjustable output and automatic transition between step-down and boost modes provide design flexibility.
Key electrical specifications include +/- 1% DC accuracy in PWM mode and +3% / -1% DC accuracy in PFM mode. The operating temperature range is -40°C to 125°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $1.53 | $1.53 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2V to 16V.
The output voltage is adjustable from 2.5V to 9V.
The output current is 2A.
Efficiency is up to 95%.
The switching frequency is 2.4MHz.
The operating junction temperature range is -40°C to 125°C.
The TPS63070RNMT is available in 15-VQFN-HR and 15-PowerVFQFN packages.
