TPS63020QDSJRQ1 The Texas Instruments TPS63020QDSJRQ1 is a high-efficiency automotive single inductor buck-boost converter. It features an adjustable output voltage and operates with an input voltage range of 1.8V to 5.5V.
Mfr Part #:

TPS63020QDSJRQ1

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS63020QDSJRQ1 is a high-efficiency automotive single inductor buck-boost converter. It features an adjustable output voltage and operates with an input voltage range of 1.8V to 5.5V.
✓ Total Stock: 38,457 pcs
$ Price Range: $1.96

TPS63020QDSJRQ1 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
26,525 pcs
On Request
26525 pcs On Request 1 18 On Request 18+ On Request On Request
Shenzhen YJT Company Limited ✓
Non-Authorised Inventory information
5,788 pcs
On Request
5788 pcs On Request 1 On Request On Request On Request On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
4,604 pcs
On Request
4604 pcs On Request 1 On Request On Request 20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,540 pcs
On Request
1540 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS63020QDSJRQ1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Efficiency
Features
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

TPS63020QDSJRQ1 Description

Short technical summary and product information.

The Texas Instruments TPS63020QDSJRQ1 is an automotive-qualified, high-efficiency single inductor buck-boost converter designed for demanding applications. It supports an input voltage range from 1.8 V to 5.5 V and offers an adjustable output voltage from 1.2 V to 5.5 V.



This converter boasts up to 96% efficiency and features a 4A switch current limit. It can deliver 3 A output current at 3.3 V in step-down mode (VIN > 3.6 V) and more than 2 A output current at 3.3 V in boost mode (VIN > 2.5 V). The device automatically transitions between step-down and boost modes, ensuring optimal performance across varying input conditions. It operates at a fixed frequency of 2.4 MHz and includes features like frequency synchronization, light-load efficiency, load disconnect during shutdown, and a power good output.

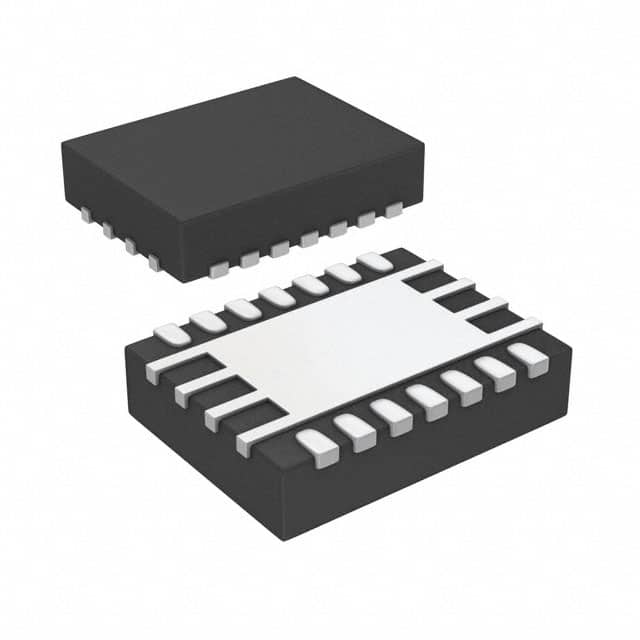

The TPS63020QDSJRQ1 is qualified for automotive applications under AEC-Q100. It is available in a compact 3 mm x 4 mm VSON-14 package with an exposed pad for improved thermal performance. The operating temperature range is -40°C to 125°C (TJ).

TPS63020QDSJRQ1 Quick Information

Product Type: Buck-Boost Converter
Series: TPS63020-Q1
Canonical Name: Texas Instruments TPS63020-Q1 High Efficiency Single Inductor Buck-Boost Converter
Subcategory: Buck-Boost Converters

TPS63020QDSJRQ1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS63020QDSJRQ1 Estimated Pricing

Qty Low High
1+ $1.96 $1.96

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS63020QDSJRQ1 Features

  • High efficiency automotive buck-boost converter.
  • Adjustable output voltage from 1.2V to 5.5V.
  • Input voltage range of 1.8V to 5.5V.
  • 4A switch current limit.
  • Compact 3mm x 4mm VSON-14 package.

TPS63020QDSJRQ1 Applications

  • Automotive power systems.
  • Portable electronic devices.
  • Battery-powered applications.
  • Power regulation circuits.

TPS63020QDSJRQ1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TPS63020QDSJRQ1?

1.8V to 5.5V.

What is the output voltage range?

Adjustable from 1.2V to 5.5V.

What is the operating temperature range?

-40°C to 125°C.

What is the package type of the TPS63020QDSJRQ1?

14-VSON (4x3 mm) surface mount package.

What is the switching frequency?

2.4 MHz.

What is the output current capability?

Up to 3A in step-down mode (VIN > 3.6V) and more than 2A in boost mode (VIN > 2.5V).

What is the maximum efficiency?

Up to 96% in step-down mode.
