| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | 24+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |

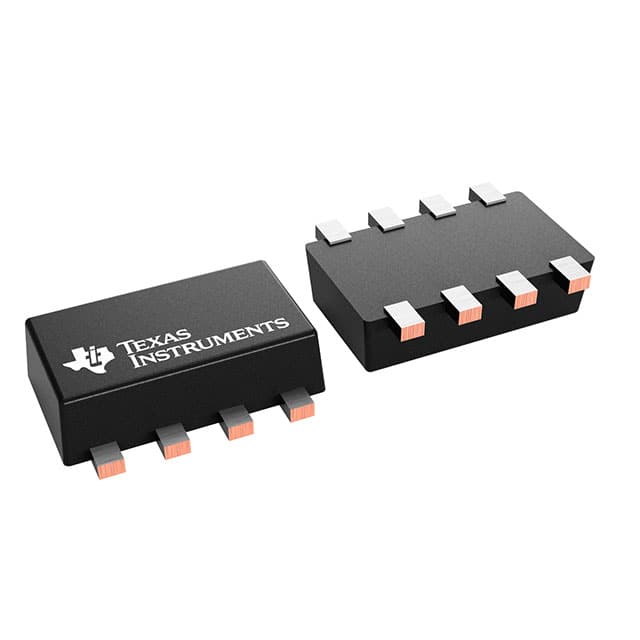

The TPS62933FDRLR from Texas Instruments is a high-efficiency, synchronous buck converter designed for a wide range of applications. It supports an input voltage range of 3.8 V to 30 V and can deliver up to 3 A of continuous output current with an adjustable output voltage.
This device operates with a selectable switching frequency between 200 kHz and 2.2 MHz, offering flexibility in design. It is housed in a compact 1.6 mm x 2.1 mm SOT-583 package, making it suitable for space-constrained applications. The converter includes integrated MOSFETs and internal compensation for ease of use and a small solution size.
Key electrical characteristics include an adjustable output voltage range starting from 0.8 V and an operating junction temperature range of -40°C to 150°C. The TPS62933FDRLR is designed for applications requiring efficient voltage step-down conversion, such as in building automation, industrial PCs, and portable electronics.
Mounting is via surface mount technology. The device offers features like peak current control mode and non-latched protections for over-temperature, over-current, over-voltage, and under-voltage conditions.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The minimum input voltage is 3.8 V.
The nominal output current is 3 A.
The switching frequency ranges from 200 kHz to 2.2 MHz.
The operating junction temperature range is -40°C to 150°C.
It is available in a SOT-583 surface-mount package.
Yes, the output voltage is adjustable with a minimum of 0.8 V.
Yes, it features synchronous rectification.
