TPS62822DLCR The Texas Instruments TPS62822DLCR is a step-down DC/DC switching regulator. It features an adjustable output voltage and a 2A output current capability.
Mfr Part #:

TPS62822DLCR

Available from 3 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS62822DLCR is a step-down DC/DC switching regulator. It features an adjustable output voltage and a 2A output current capability.
✓ Total Stock: 16,108 pcs
$ Price Range: $0.60

TPS62822DLCR Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
9,000 pcs
On Request
9000 pcs On Request 1 On Request On Request 21+ On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
5,787 pcs
On Request
5787 pcs On Request 1 On Request On Request 21+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,321 pcs
On Request
1321 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS62822DLCR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Function
Input Voltage
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Output Voltage
Quiescent Current
Supplier Device Package
Supplier Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

TPS62822DLCR Description

Short technical summary and product information.

The Texas Instruments TPS62822DLCR is a high-performance step-down DC/DC switching regulator designed for various power management applications. It operates with an input voltage range of 2.4V to 5.5V and can deliver an output current of up to 2A.



This regulator utilizes a Buck topology and features an adjustable output voltage, configurable from 0.6V to 4V. It operates at a switching frequency of typically 2.2MHz, contributing to its efficiency and compact design. The device includes synchronous rectification for improved performance and a very low quiescent current of 4µA, making it suitable for power-sensitive applications.

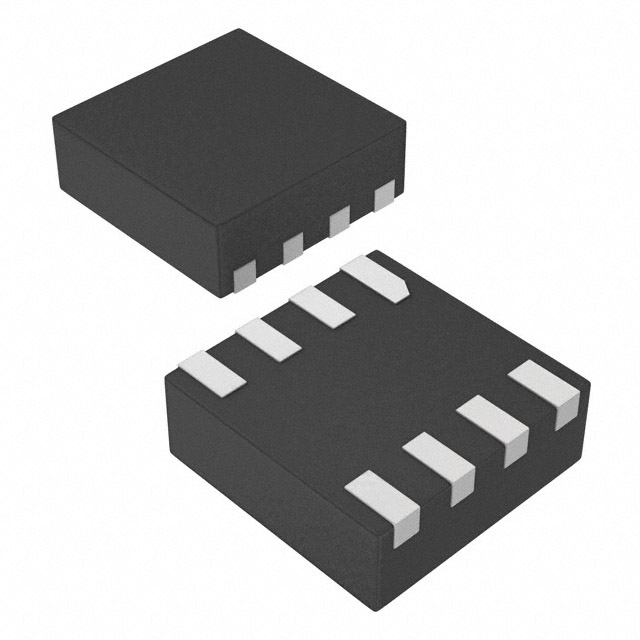

The TPS62822DLCR is housed in an 8-VSON-HR package, designed for surface mounting. Its operating temperature range is -40°C to 125°C (TJ). Key features include 1% feedback voltage accuracy, enable and power good signals, and internal soft-start circuitry.



This component is well-suited for applications requiring efficient voltage conversion and stable power delivery. Its adjustable output and compact package make it a versatile choice for embedded systems and portable devices.

TPS62822DLCR Quick Information

Product Type: DC/DC Switching Regulator
Series: TPS62822
Canonical Name: Texas Instruments TPS62822DLCR Step-Down DC/DC Switching Regulator
Subcategory: Buck Converter

TPS62822DLCR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS62822DLCR Estimated Pricing

Qty Low High
1+ $0.60 $0.60

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS62822DLCR Features

  • Step-down DC/DC switching regulator.
  • 2.4V to 5.5V input voltage range.
  • Adjustable output voltage from 0.6V to 4V.
  • Maximum output current of 2A.
  • Surface mount 8-VSON-HR package.

TPS62822DLCR Applications

  • Efficient voltage regulation.
  • Powering portable devices.
  • Embedded system power supplies.
  • Battery-powered applications.

TPS62822DLCR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TPS62822DLCR?

The input voltage range is 2.4V to 5.5V.

What package does the TPS62822DLCR come in?

It comes in an 8-VSON-HR (2x1.5 mm) surface mount package.

What is the operating temperature range of the TPS62822DLCR?

Operating junction temperature range is -40°C to 125°C.

What is the maximum output current of the TPS62822DLCR?

The maximum output current is 2A.

What is the switching frequency of the TPS62822DLCR?

The switching frequency is 2.2 MHz.

Does the TPS62822DLCR support adjustable output voltage?

Yes, the output voltage is adjustable from 0.6V to 4V.
