| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
120,000 pcs
|
120000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,147 pcs
|
3147 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
| On Request | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Duty Cycle | |
| Features | |
| Frequency | |
| Function | |
| Input Voltage | |
| Lead Style | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Quiescent Current | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments TPS62812QWRWYRQ1 is an automotive-grade step-down (buck) converter designed for efficient power management. It supports an input voltage range from 2.75V to 6V and can deliver up to 2A of output current.
This device features an adjustable output voltage, ranging from 0.6V to 5.5V, with an accuracy of ±1% during PWM operation. The switching frequency is adjustable between 1.8MHz and 4MHz, allowing for flexibility in design. Key features include Enable, Forced PWM, Frequency synchronization, Light Load Efficiency, Output discharge, Over Current Protection, Power good, Pre-Bias Start-Up, Spread Spectrum, Synchronous Rectification, Tracking, and UVLO Fixed.

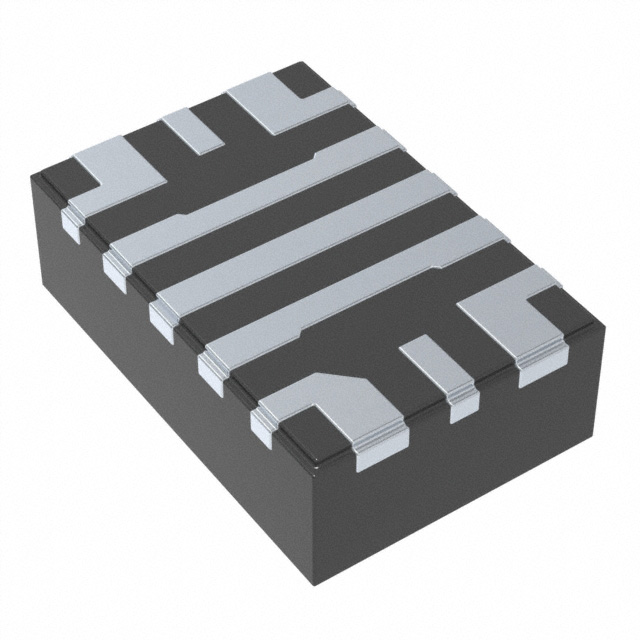

The TPS62812QWRWYRQ1 is housed in a 9-VQFN-HR (3mm x 2mm) package with wettable flanks, suitable for surface mounting. It operates within a temperature range of -40°C to 125°C (TA) and is AEC-Q100 qualified for automotive applications. The device also boasts a low quiescent current of 15µA typical and is functional safety-capable.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.47 | $1.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.75V to 6V.
The maximum output current is 2A.
The output voltage is adjustable from 0.6V to 5.5V.
The operating temperature range is -40°C to 125°C (TA).
It is supplied in a 9-VQFN-HR package with wettable flanks.
Yes, it is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
