| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology | |
| Voltage |
The Texas Instruments TPS62808YKAR is an active step-down DC/DC converter designed for power management applications. It features a wide input voltage range from 1.75V to 5.5V and can deliver up to 0.6A of output current. The device operates at a switching frequency of 1.5MHz, contributing to its efficiency and compact design.
Key electrical characteristics include an ultra-low quiescent current of 2.3µA typical, enabling power-efficient operation in light load conditions. The output voltage is adjustable, with a minimum of 1.8V and a maximum of 3.3V, and offers 1% output voltage accuracy. The converter supports 100% duty cycle operation and includes features such as Enable, Forced PWM, Output Discharge, Over Current Protection, Synchronous Rectification, and UVLO Fixed.

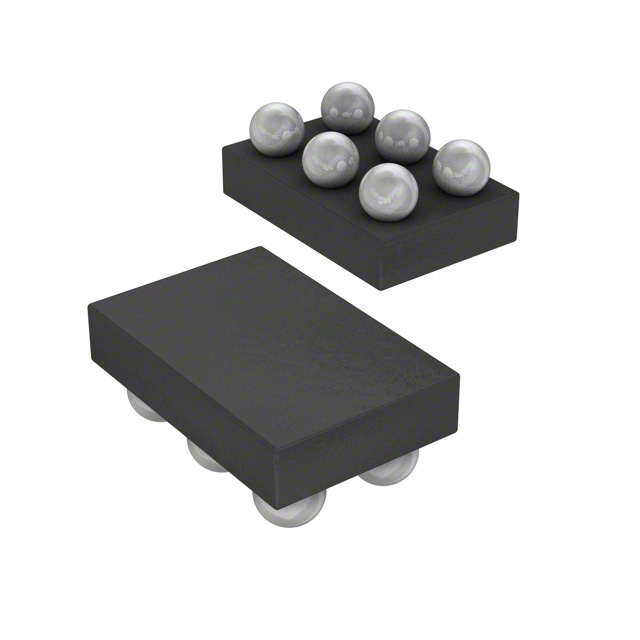

Packaged in a tiny 6-pin, 0.35mm pitch WCSP (DSBGA) measuring 0.7mm x 1.05mm, the TPS62808YKAR is suitable for space-constrained designs, supporting less than 0.6mm design height and less than 5mm² design size. It is designed for surface mount applications and operates within an ambient temperature range of -40°C to 125°C (TJ).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.48 | $0.48 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the TPS62808YKAR is 1.75V to 5.5V.
The TPS62808YKAR can provide a maximum output current of 0.6A.
The switching frequency for the TPS62808YKAR is 1.5MHz.
The operating temperature range for the TPS62808YKAR is -40°C to 125°C.
The typical quiescent current (Iq) for the TPS62808YKAR is 2.3µA.
The TPS62808YKAR is available in a 6-DSBGA (1.05x0.70) package.
