| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
43,777 pcs
|
43777 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 20+ | On Request | On Request | |
|
1,842 pcs
|
1842 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,302 pcs
|
1302 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
60 pcs
|
60 pcs | On Request | 1 | 16 | On Request | 1709+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Quiescent Current | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The TPS62480RNCR from Texas Instruments is a high-performance synchronous step-down converter designed for efficient power management. It supports an input voltage range of 2.4V to 5.5V and can deliver up to 6A of output current. The device features adjustable output voltage, with a minimum output of 0.6V and a maximum of 5.5V.
This converter operates in current mode with a switching frequency of 2.2MHz, contributing to its compact solution size and high efficiency. It includes features such as synchronous rectification for improved efficiency, adjustable soft-start, and power good output. The operating temperature range is -40°C to 125°C (TJ).

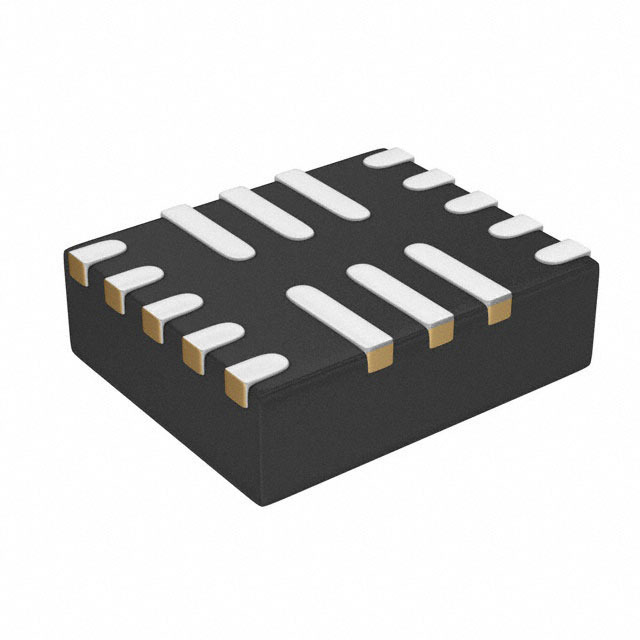

The TPS62480RNCR is available in a 16-VQFN package, measuring 3mm x 2.5mm, suitable for surface mount applications. Its typical quiescent current is a low 23 µA, making it suitable for power-sensitive applications. The device also offers features like phase interleaving for multiphase operation and automatic power save modes.
Key electrical characteristics include a maximum duty cycle of 100% and a feedback voltage accuracy of ±1% in PWM mode. The device is designed for applications requiring efficient voltage conversion from a wide input voltage range to a lower, adjustable output voltage.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.33 | $1.33 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the TPS62480RNCR is 2.4 V to 5.5 V.
The maximum output current of the TPS62480RNCR is 6 A.
The typical quiescent current of the TPS62480RNCR is 23 µA.
The switching frequency of the TPS62480RNCR is 2.2 MHz.
The operating temperature range for the TPS62480RNCR is -40°C to 125°C.
The TPS62480RNCR is available in a 16-VQFN package.
The TPS62480RNCR uses Current Mode control.
