| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,288 pcs
|
6288 pcs | On Request | 1 | On Request | On Request | 0727+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Conflict Minerals | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments TPS62401DRCRG4 is a high-performance analog IC belonging to the DC DC Switching Regulators category. This dual switching controller utilizes Pulse Width Modulation (PWM) for voltage control and operates with a wide input voltage range from 2.5V to 6V, with a nominal input of 3.6V. It is capable of delivering an output current of up to 600mA and features a maximum switching frequency of 2500 kHz.

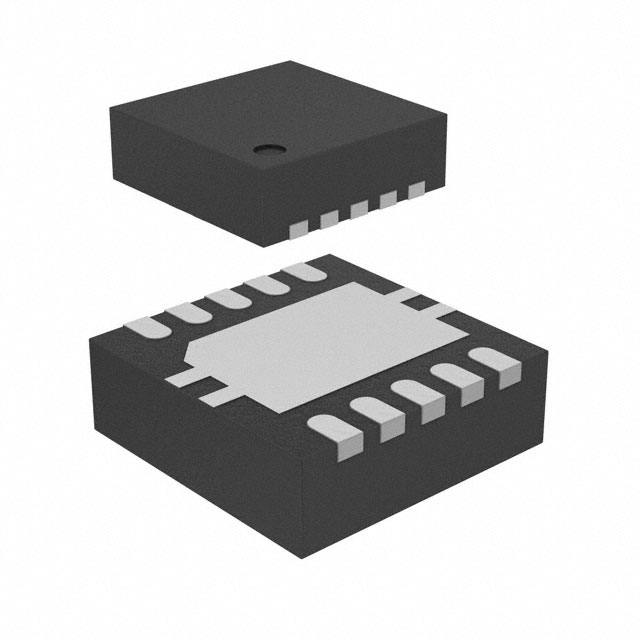

Designed for surface mounting, the TPS62401DRCRG4 comes in a compact 10-VSON (3x3) package, also described as a 10-VFDFN Exposed Pad with a specific manufacturer description of 3 X 3 MM, GREEN, PLASTIC, SON-10. The package style is a small outline with a heat sink/slug and a very thin profile. The operating temperature range is from -40°C to 85°C, making it suitable for industrial applications. The terminal finish is Nickel Palladium Gold, and the terminal pitch is 0.5 mm.
This device functions as a step-down (buck) converter and includes a synchronous rectifier for improved efficiency. It offers programmable output voltage with a nominal value of 2.5V and supports positive output configurations. The controller operates with a nominal input voltage of 3.6V and has a maximum input voltage limit of 6V, with a minimum limit of 2.5V. The part is RoHS3 compliant and Lead Free.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.08 | $1.08 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 2.5V to 6V, with a nominal voltage of 3.6V.
The output voltage is 2.5V, programmable or fixed.
The maximum output current is 600mA.
The switching frequency is up to 2.5MHz.
The operating temperature range is -40°C to 85°C.
The device is available in a 10-VSON (3x3) or 10-VFDFN Exposed Pad package.
Yes, it features a synchronous rectifier.
