TPS61372YKBR The Texas Instruments TPS61372YKBR is a synchronous boost converter designed for power management applications. It supports an output voltage up to 16V with a 3.8A current limit.
Mfr Part #:

TPS61372YKBR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS61372YKBR is a synchronous boost converter designed for power management applications. It supports an output voltage up to 16V with a 3.8A current limit.
✓ Total Stock: 1,173 pcs
$ Price Range: $2.10

TPS61372YKBR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Xingangxin ✓
Non-Authorised Inventory information
1,173 pcs
On Request
1173 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS61372YKBR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

TPS61372YKBR Description

Short technical summary and product information.

The Texas Instruments TPS61372YKBR is a fully integrated synchronous boost converter featuring load disconnect functionality. It is designed to support output voltages up to 16V with a switch peak current limit of 3.8A.



The device operates with an input voltage range of 2.5V to 5.5V. Key electrical specifications include a low-side FET on-resistance of 33 mΩ and a high-side FET on-resistance of 104 mΩ. It maintains a quiescent current of 74 µA from VIN and 10 µA from VOUT, with a shutdown current of 1 µA from VIN.

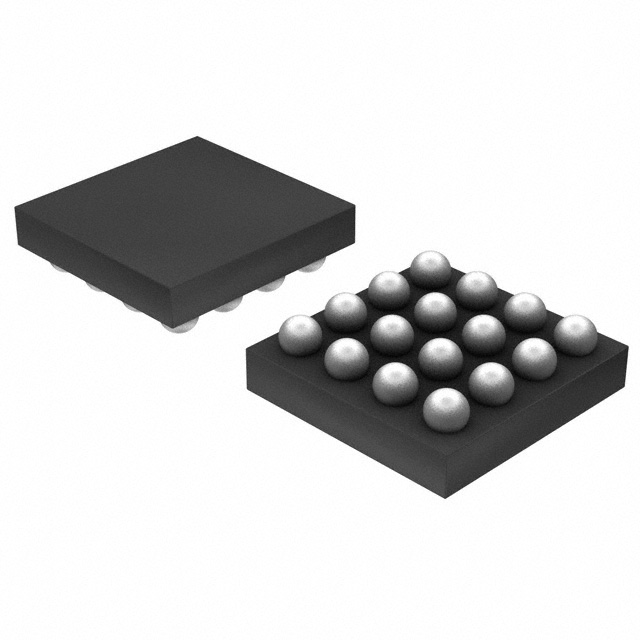

The switching frequency is typically 1.5 MHz, with a soft-start time of 0.9 ms. The TPS61372YKBR is housed in a compact 16-pin DSBGA package, suitable for surface mount applications. Its operating temperature range is -40°C to 125°C (TJ).



This boost converter is ideal for applications requiring efficient voltage step-up. Features like hiccup output short protection and auto PFM/forced PWM selection contribute to its versatility in power management designs.

TPS61372YKBR Quick Information

Product Type: DC DC Switching Regulator
Series: TPS61372
Canonical Name: TPS61372YKBR Synchronous Boost Converter
Subcategory: PMIC

TPS61372YKBR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS61372YKBR Estimated Pricing

Qty Low High
1+ $2.10 $2.10

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS61372YKBR Features

  • Synchronous boost converter with load disconnect.
  • Output voltage up to 16V.
  • 3.8A switch peak current limit.
  • Low quiescent current of 74 µA.
  • Compact 16-pin DSBGA package.

TPS61372YKBR Applications

  • Efficient voltage step-up applications.
  • Portable electronic devices.
  • Power management solutions.
  • Battery-powered systems.

TPS61372YKBR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TPS61372YKBR?

2.5V to 5.5V.

What package does the TPS61372YKBR come in?

16-XFBGA/DSBGA (16-DSBGA supplier package), surface mount.

What is the operating temperature range?

-40°C to 125°C (junction temperature).

What is the output voltage range?

Up to 16V, adjustable.

What is the switching frequency?

1.5MHz typical, ranging from 1.2MHz to 1.7MHz.

Is the TPS61372YKBR a synchronous converter?

Yes, it features synchronous rectification.

What is the quiescent current?

74µA from VIN and 10µA from VOUT.
