The TPS56C215RNNT from Texas Instruments is a high-performance synchronous buck converter, part of the SWIFT™ family, capable of delivering up to 12A of continuous output current. It is designed to operate within an input voltage range of 3.8V to 17V, making it suitable for a variety of power supply applications.
This converter utilizes the D-CAP3™ control mode, which ensures fast transient response and supports ceramic output capacitors. Key features include an adjustable output voltage from 0.6V to 5.5V, selectable switching frequencies of 400kHz, 800kHz, and 1.2MHz, and integrated MOSFETs with low on-resistance (7.8mΩ and 3.2mΩ) for improved efficiency. It also offers adjustable current limit settings, power good indication, and prebias startup capabilities.
The TPS56C215RNNT is housed in a compact 3.5mm x 3.5mm VQFN-HR package, suitable for surface mounting. Its operating temperature range is -40°C to 150°C (junction temperature), ensuring reliability in demanding environments. The device supports selectable forced continuous conduction mode (FCCM) for tight output voltage ripple or auto-skipping Eco-mode for high light-load efficiency.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.04 | $2.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3.8V to 17V.
The maximum output current is 12A.
The output voltage can be adjusted from 0.6V to 5.5V.
The operating temperature range is -40°C to 125°C (TJ).

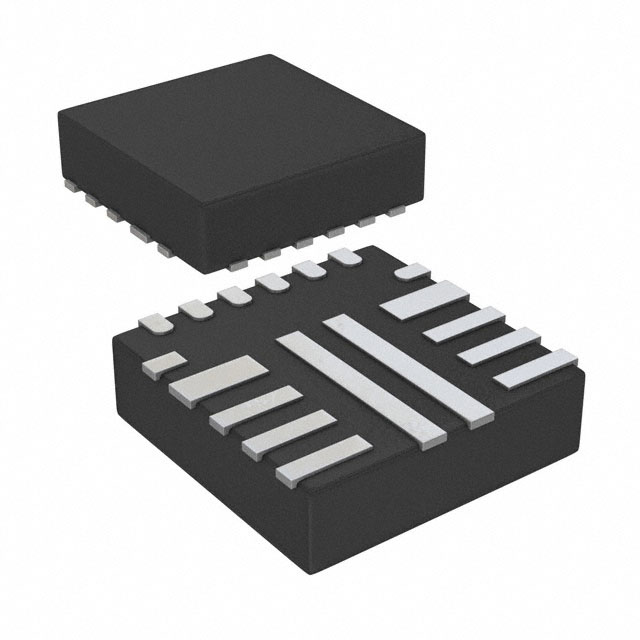

It is supplied in an 18-VQFN-HR package measuring 3.5mm x 3.5mm.
It uses the D-CAP3 control mode.
The selectable switching frequencies are 400kHz, 800kHz, and 1.2MHz.
