| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,436 pcs
|
16436 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Function | |
| Halogen Free | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Quiescent Current | |
| SVHC Present | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments TPS566235RJNT is a high-performance synchronous buck converter. It is designed to deliver up to 6A of continuous output current, making it suitable for various power supply applications.
This converter features a wide input voltage range of 4.5V to 18V and supports an adjustable output voltage from 0.6V to 7V. The device operates at a switching frequency of 600kHz, contributing to its efficiency and compact design. It also boasts a low quiescent current of 110 µA, which is beneficial for power-sensitive applications.

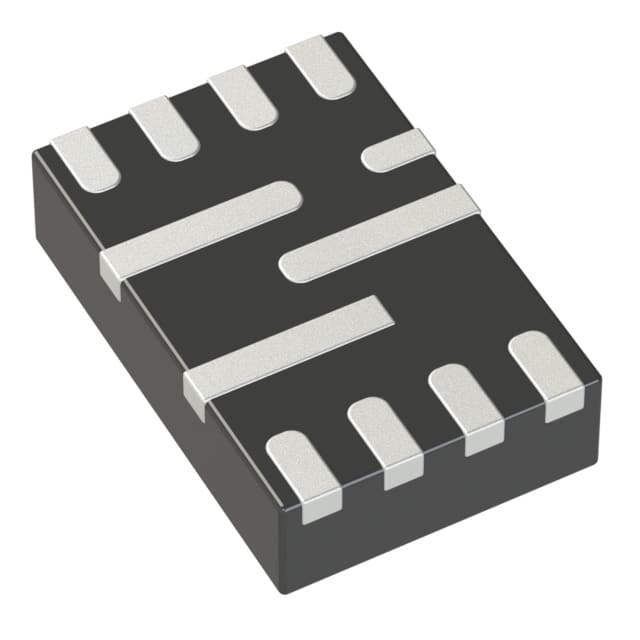

The TPS566235RJNT is housed in a 13-VQFN-HR (3x2) package and is designed for surface mount applications. Its operating temperature range is -40°C to 125°C (TJ), ensuring reliable performance in demanding environments. Key features include over-current protection and power good indication.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.67 | $1.67 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 4.5V to 18V.
The maximum output current is 6A.
The switching frequency is 600 kHz.
The operating temperature range is -40°C to 125°C.
It comes in a 13-VFQFN package (13-VQFN-HR 3x2).
The output voltage is adjustable from 0.6V to 7V.
The typical quiescent current is 110 µA.
