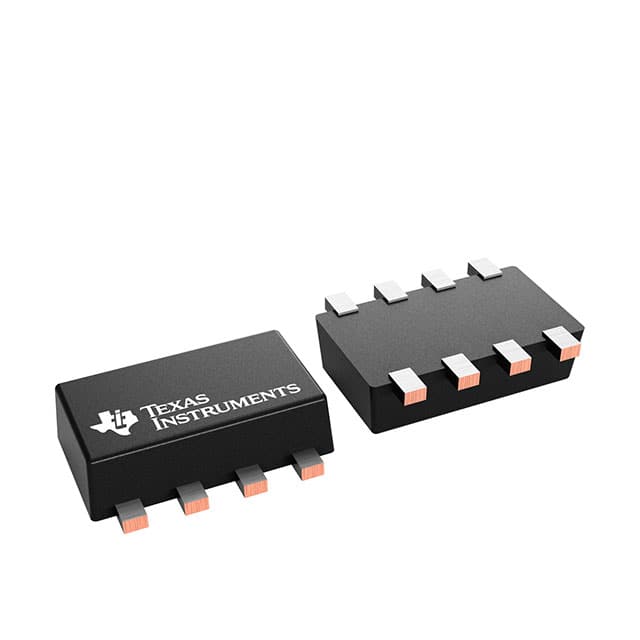

TPS563300DRLR The Texas Instruments TPS563300DRLR is a high-efficiency synchronous buck converter. It supports a wide input voltage range and delivers up to 3A continuous output current.
Mfr Part #:

TPS563300DRLR

Available from 1 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS563300DRLR is a high-efficiency synchronous buck converter. It supports a wide input voltage range and delivers up to 3A continuous output current.
✓ Total Stock: 8,000 pcs
$ Price Range: $0.41

TPS563300DRLR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
8,000 pcs
On Request
8000 pcs On Request 1 On Request On Request 25+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS563300DRLR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Duty Cycle
Frequency
Function
Mounting Type
Number of Outputs
Operating Temperature
Output Configuration
Output Type
Quiescent Current
Supplier Device Package
Synchronous Rectifier
Topology
Voltage
View Similar Products (0)

TPS563300DRLR Description

Short technical summary and product information.

The Texas Instruments TPS563300DRLR is a synchronous buck converter designed for a wide range of applications. It features an input voltage range of 3.8 V to 28 V and can provide up to 3 A of continuous output current. The output voltage is adjustable from 0.8 V to 22 V.



This converter utilizes peak current control mode for fast transient response and good regulation. It incorporates Pulse Frequency Modulation (PFM) for enhanced light-load efficiency and a low quiescent current of 20 μA typical, beneficial for battery-powered devices. The device operates at a fixed switching frequency of 500 kHz and includes Frequency Spread Spectrum for reduced EMI noise.



Protections include Over-Temperature Protection (OTP), Over-Current Protection (OCP), Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), and Under-Voltage Lockout (UVLO). The TPS563300DRLR is housed in a compact 1.6 mm x 2.1 mm SOT-583 package, suitable for space-constrained designs.



Applications include building automation, industrial PCs, multifunction printers, enterprise projectors, portable electronics, connected peripherals, smart speakers, monitors, and distributed power systems with common input voltages like 5V, 12V, 19V, and 24V.

TPS563300DRLR Quick Information

Product Type: DC DC Switching Regulator
Canonical Name: TPS563300 Synchronous Buck Converter
Subcategory: Buck Converter

TPS563300DRLR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS563300DRLR Estimated Pricing

Qty Low High
1+ $0.41 $0.41

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS563300DRLR Features

  • 3.8V to 28V input voltage range.
  • 3A continuous output current.
  • Adjustable output voltage from 0.8V.
  • 500kHz fixed switching frequency.
  • Compact SOT-583 package.

TPS563300DRLR Applications

  • Suitable for building automation.
  • Used in industrial PC applications.
  • Ideal for portable electronics.
  • Supports smart speaker designs.
  • Powers distributed systems.

TPS563300DRLR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of TPS563300DRLR?

3.8V to 28V.

What is the output voltage range?

Adjustable from 0.8V to 22V.

What package does TPS563300DRLR come in?

SOT-583 surface mount package.

What is the operating junction temperature range?

-40°C to 150°C.

Does it have overcurrent protection?

Yes, includes OCP, OTP, OVP, UVP, UVLO.

What is the switching frequency?

Fixed 500 kHz.
