| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
48 pcs
|
48 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Type | |
| Output Voltage | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Tape & Reel | |
| Topology | |
| Voltage |
The TPS54A20RNJR from Texas Instruments is a high-performance, two-phase synchronous series capacitor buck converter. It is designed to deliver up to 10A of output current with an input voltage range of 8V to 14V. The output voltage is adjustable from 0.51V to 2V, offering flexibility for various applications.
Key electrical specifications include a selectable switching frequency up to 10MHz, a minimum on-time of 14ns, and input overvoltage protection up to 17V. The converter features automatic current balancing between phases and an adjustable current limit with auto-restart.

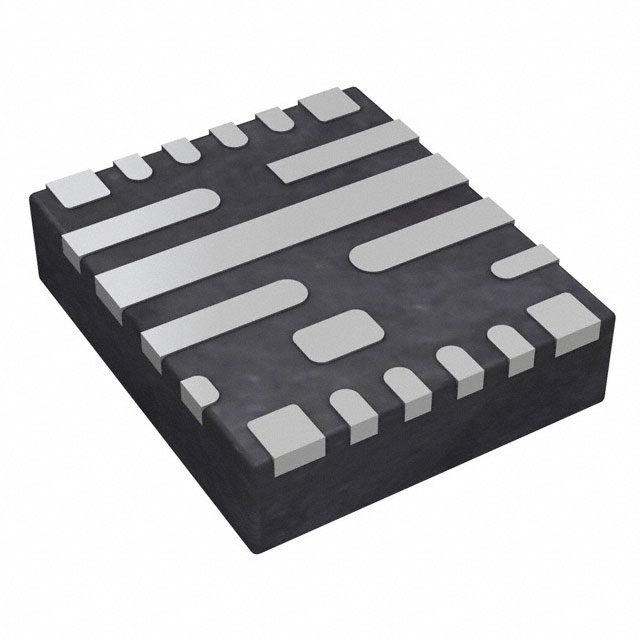

This device is housed in a compact 20-VQFN-HR (4x3.5) package and is designed for surface mount applications. It operates within an ambient temperature range of -40°C to 125°C (TJ). The TPS54A20RNJR is suitable for designs requiring efficient and compact DC/DC conversion.
Compliance information indicates RoHS3 compliance and REACH unaffected status. The Moisture Sensitivity Level (MSL) is rated at 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.90 | $3.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 8V to 14V.
The maximum output current is 10A.
The output voltage is adjustable from 0.51V to 2V.
The operating temperature range is -40°C to 125°C (TJ).
It is in a 20-VQFN-HR package.
Yes, it is RoHS3 Compliant.
The MSL rating is Level 1 Unlimited.
