Mfr Part #:

TPS546D24RVFR

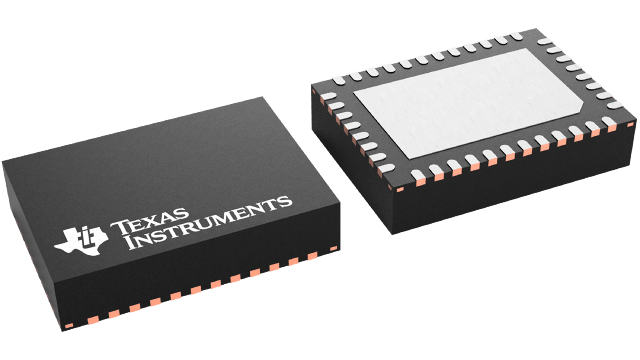

The Texas Instruments TPS546D24RVFR is a 40A stackable synchronous buck converter with PMBus communication. It operates from a 2.95V to 16V input and provides an adjustable output voltage.

✓ Total Stock: 4,737 pcs

$ Price Range: $5.94

TPS546D24RVFR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Xingangxin ✓ Non-Authorised Inventory information	4,737 pcs On Request	4737 pcs	On Request	1	On Request	On Request	On Request	On Request	On Request

TPS546D24RVFR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	Special Purpose Regulators
Manufacturer Name	Texas Instruments
Duty Cycle	85 %
Mounting Type	Surface Mount
Operating Temperature	-40°C to 125°C
Output Current	40 A
Quiescent Current	9 mA

View Similar Products (0)

TPS546D24RVFR Description

Short technical summary and product information.

The TPS546D24RVFR from Texas Instruments is a high-performance 40A stackable synchronous buck converter, part of the SWIFT family. It is designed for efficient power management with a wide input voltage range of 2.95V to 16V and an output voltage adjustable from 0.25V to 5.5V via PMBus or pin strapping.

This converter features integrated MOSFETs with low on-resistance (4.5mΩ/0.9mΩ) and supports stackable configurations for up to 160A total output current with current sharing. It utilizes Average Current Mode Control with selectable internal compensation and offers extensive PMBus command set with telemetry for monitoring and control.

The TPS546D24RVFR operates within an industrial temperature range of -40°C to 125°C and is housed in a compact LQFN-CLIP (RVF) package measuring 7mm x 5mm. Its features include adaptive voltage scaling, adjustable current limit, differential remote sense, and power good indication, making it suitable for demanding power applications.

TPS546D24RVFR Quick Information

Product Type: Buck Converter

Series: TPS546D24

Canonical Name: TPS546D24RVFR Stackable 40A Synchronous SWIFT Buck Converter with PMBus

Subcategory: Buck Converter

TPS546D24RVFR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TPS546D24RVFR Estimated Pricing

Qty	Low	High
1+	$5.94	$5.94

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS546D24RVFR Features

40A stackable synchronous buck converter
PMBus interface for control and telemetry
Wide 2.95V to 16V input voltage range
Adjustable output from 0.25V to 5.5V
Operates from -40°C to 125°C

TPS546D24RVFR Applications

High-density power systems
Server and telecom infrastructure
Point-of-load power delivery
Industrial automation equipment

TPS546D24RVFR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the TPS546D24RVFR?

2.95 V to 16 V.

What is the output voltage range?

0.25 V to 5.5 V, selectable via PMBus.

What is the maximum output current?

40 A, and can be stacked up to 160 A with up to four devices.

What is the package type and size?

LQFN-CLIP (RVF) package measuring 7 mm × 5 mm (35 mm²).

What is the operating temperature range?

-40°C to 125°C.

What control mode does it use?

Average current mode control with selectable internal compensation.

Does it support PMBus?

Yes, it has an extensive PMBus command set including telemetry.
