TPS5450DDAR The TPS5450DDAR is a 5 A adjustable step-down switching regulator featuring a 36 V maximum input voltage and 500 kHz fixed switching frequency. It integrates a 110 mΩ power switch and offers overcurrent protection.
Mfr Part #:

TPS5450DDAR

Available from 1 distributors
Mfr Name: NA
NA
The TPS5450DDAR is a 5 A adjustable step-down switching regulator featuring a 36 V maximum input voltage and 500 kHz fixed switching frequency. It integrates a 110 mΩ power switch and offers overcurrent protection.
✓ Total Stock: 3 pcs

TPS5450DDAR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
3 pcs
On Request
3 pcs On Request 1 On Request On Request 13+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS5450DDAR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Efficiency
Features
Lead Style
Mounting Type
Number of Pins
Operating Temperature
Package / Case
Quiescent Current
View Similar Products (0)

TPS5450DDAR Description

Short technical summary and product information.

The TPS5450DDAR is a high-efficiency step-down DC-DC switching regulator designed to deliver up to 5 A of continuous output current with a 6 A peak capability. Operating with an input voltage range from 5.5 V to 36 V, this device provides an adjustable output voltage between 1.22 V and 31 V. The fixed 500 kHz switching frequency allows for the use of small external components while maintaining high efficiency greater than 90% across typical operating conditions.



Engineered for robust performance, the regulator incorporates a 110 mΩ integrated MOSFET switch to minimize conduction losses. It features voltage mode control with 1.5% initial accuracy and low quiescent current of 3 µA. Additional design protections include overcurrent protection and an enable pin for system power management. The shutdown supply current is limited to 18 µA, supporting energy-efficient standby modes.

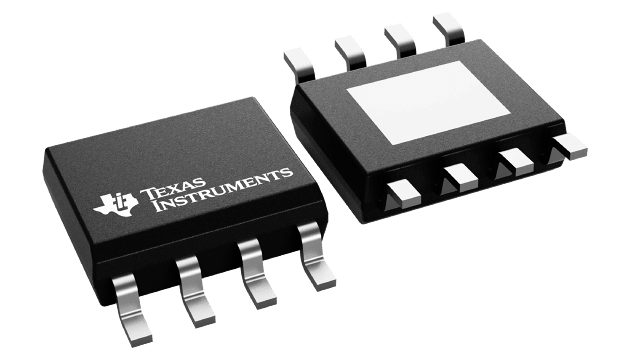

Housed in an 8-pin HSOIC (DDA) surface-mount package measuring 4.9 mm by 6 mm, the TPS5450DDAR is optimized for space-constrained PCB layouts. It operates reliably across an extended temperature range from -40°C to 125°C. This component is suitable for industrial equipment, portable instruments, and battery-powered systems requiring efficient voltage regulation.

TPS5450DDAR Quick Information

Product Type: DC-DC Switching Regulator
Canonical Name: TPS5450DDAR 5-A Adjustable Step-Down Switching Regulator
Subcategory: Buck Converter

TPS5450DDAR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS5450DDAR Features

  • Delivers 5 A continuous output current.
  • Accepts input voltages up to 36 V.
  • Fixed 500 kHz switching frequency operation.
  • Integrates a 110 mΩ power MOSFET switch.
  • Features overcurrent protection and enable pin.

TPS5450DDAR Applications

  • Industrial equipment power distribution networks.
  • Portable instrument battery charging circuits.
  • Embedded systems voltage regulation stages.
  • Telecommunications infrastructure backend power supplies.

TPS5450DDAR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range?

The device accepts an input voltage from 5.5 V to 36 V.

What package type does the TPS5450DDAR use?

It is housed in an 8-pin HSOIC (DDA) surface-mount package.

What is the operating temperature range?

The component operates reliably from -40°C to 125°C.

What is the maximum output current rating?

The regulator provides 5 A of continuous output current with a 6 A peak capability.

How does the device manage thermal protection?

It includes built-in overcurrent protection to safeguard against load faults.

What is the typical quiescent current consumption?

The quiescent current is typically 3 µA during normal operation.
