TPS53515ARVER The Texas Instruments TPS53515ARVER is a 12A synchronous SWIFT™ buck converter. It operates with an input voltage from 1.5V to 18V and provides an adjustable output voltage from 0.6V to 5.5V.
Mfr Part #:

TPS53515ARVER

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS53515ARVER is a 12A synchronous SWIFT™ buck converter. It operates with an input voltage from 1.5V to 18V and provides an adjustable output voltage from 0.6V to 5.5V.
✓ Total Stock: 17,239 pcs
$ Price Range: $2.95

TPS53515ARVER Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
8,920 pcs
On Request
8920 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request 1919+ On Request On Request
Smaxon Electronics ✓
Non-Authorised Inventory information
3,000 pcs
On Request
3000 pcs On Request 1 On Request On Request 20+ On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,319 pcs
On Request
1319 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS53515ARVER Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Duty Cycle
Input Voltage
Mounting Type
Number of Pins
Operating Temperature
Output Current
Output Voltage
Quiescent Current
Storage Temperature
Tape & Reel
View Similar Products (0)

TPS53515ARVER Description

Short technical summary and product information.

The Texas Instruments TPS53515ARVER is a high-performance, synchronous buck converter designed for efficient power management. It supports an input voltage range of 1.5V to 18V, with an optional bias voltage range of 4.5V to 25V. The converter can deliver a continuous output current of up to 12A.



Featuring the D-CAP3™ control mode, the TPS53515ARVER offers fast load-step response and supports all ceramic output capacitors. It includes adjustable current limit, overcurrent protection, power good output, and prebias startup capabilities. The device also incorporates features for light-load efficiency, such as Auto-skipping Eco-mode™.

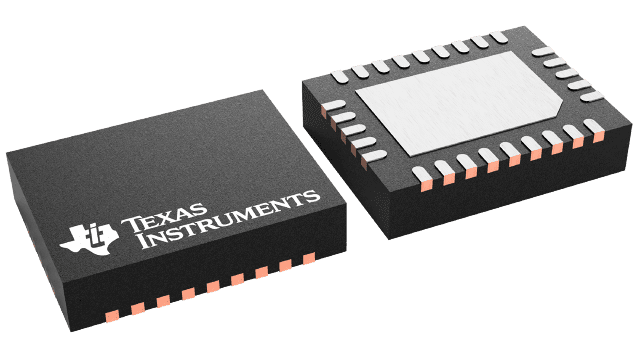

This buck converter is available in a compact 28-pin VQFN-CLIP package measuring 4.5mm x 3.5mm, with an integrated MOSFETs. The operating temperature range is -40°C to 85°C. Selectable switching frequencies from 250kHz to 1MHz allow for design optimization.

TPS53515ARVER Quick Information

Product Type: Synchronous Buck Converter
Canonical Name: TPS53515 1.5V to 18V, 12A Synchronous SWIFT™ Buck Converter
Subcategory: Buck Converters

TPS53515ARVER Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS53515ARVER Estimated Pricing

Qty Low High
1+ $2.95 $2.95

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS53515ARVER Features

  • 12A continuous output current capability.
  • Wide input voltage range: 1.5V to 18V.
  • Adjustable output voltage: 0.6V to 5.5V.
  • D-CAP3 control mode for fast response.
  • Compact 4.5mm x 3.5mm VQFN-CLIP package.

TPS53515ARVER Applications

  • High-performance power regulation.
  • Point-of-load power delivery.
  • Embedded system power supplies.
  • Consumer electronics power.
  • Industrial control systems.

TPS53515ARVER FAQs

6 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TPS53515ARVER?

The input voltage range is 1.5 V to 18 V.

What is the maximum output current supported?

The maximum output current is 12 A.

What is the output voltage range of the device?

The output voltage range is 0.6 V to 5.5 V.

What package does the TPS53515ARVER come in?

It is packaged in a VQFN-CLIP (RVE) package measuring 4.5 mm x 3.5 mm with 28 pins.

What is the operating temperature range?

The device operates within -40°C to 85°C.

Is the device RoHS compliant?

RoHS3 Compliant.
