| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,737 pcs
|
4737 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
969 pcs
|
969 pcs | On Request | 1 | On Request | On Request | 1922+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments TPS51396ARJER is a high-performance synchronous step-down (buck) voltage regulator designed for efficient power conversion. It accepts an input voltage range of 4.5V to 24V and can deliver a continuous output current of up to 8A. The output voltage is adjustable, ranging from 0.6V to 7V, with a feedback voltage accuracy of 1% at 25°C.
This regulator features a D-CAP3 control mode for fast transient response and supports selectable switching frequencies of 600kHz, 800kHz, and 1MHz via the MODE pin. It includes integrated power switches with low Rds(on) values (19.5 mΩ and 9.5 mΩ) to enhance efficiency. The device also supports ULQ™ mode for extended battery life during system standby and Eco-Mode™ or Out-of-Audio (OOA) mode for light-load operation.

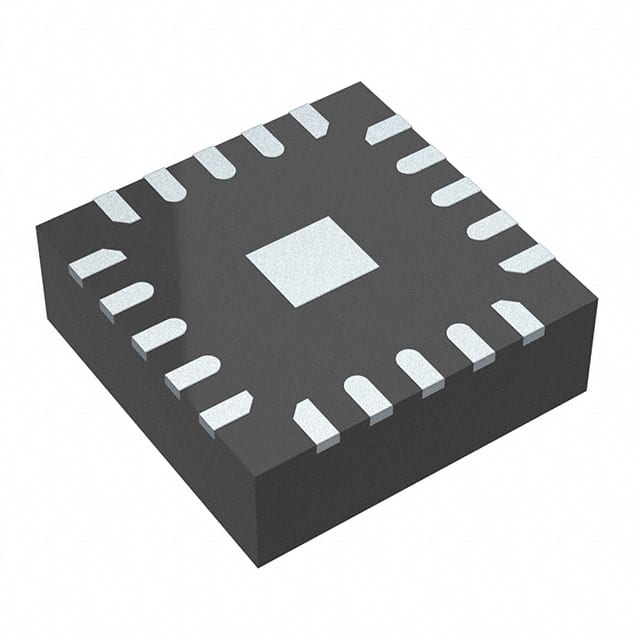

Packaged in a 20-pin 3.0mm x 3.0mm VQFN-HR package, the TPS51396ARJER is suitable for surface mounting. It operates within an ambient temperature range of -40°C to 125°C. Key features include adjustable soft-start, power good indicator, output discharge function, and cycle-by-cycle overcurrent protection.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.46 | $0.46 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
4.5V to 24V.
20-VFQFN exposed pad, also identified as 20-QFN-HR (3x3), surface mount.
-40°C to 125°C junction temperature.
Adjustable from 0.6V to 7V.
8A.
600kHz, 800kHz, and 1MHz, selectable by the MODE pin.
90nA.
