| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
53,176 pcs
|
53176 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
40,000 pcs
|
40000 pcs | On Request | 1 | On Request | On Request | 1649+ | On Request | On Request | |
|
6,565 pcs
|
6565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,505 pcs
|
2505 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,768 pcs
|
1768 pcs | On Request | 1 | On Request | On Request | 1310+ | On Request | On Request | |
|
39 pcs
|
39 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Duty Cycle | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Current | |
| Output Type | |
| Output Voltage | |
| Quiescent Current | |
| SVHC Present | |
| Supplier Device Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The TPS51362RVER from Texas Instruments is a high-performance synchronous buck converter capable of delivering up to 10A of output current. It is designed to operate efficiently within a wide input voltage range of 3V to 22V, making it suitable for various power supply applications.
This converter features an adjustable output voltage that can be set anywhere between 0.6V and 2V, offering flexibility for different system requirements. A key characteristic is its ultra-low quiescent current of 0.0001A, which is crucial for extending battery life in portable and standby systems. The device operates at a switching frequency of 800kHz, utilizing the D-CAP2 control mode for stable operation with various output capacitors.

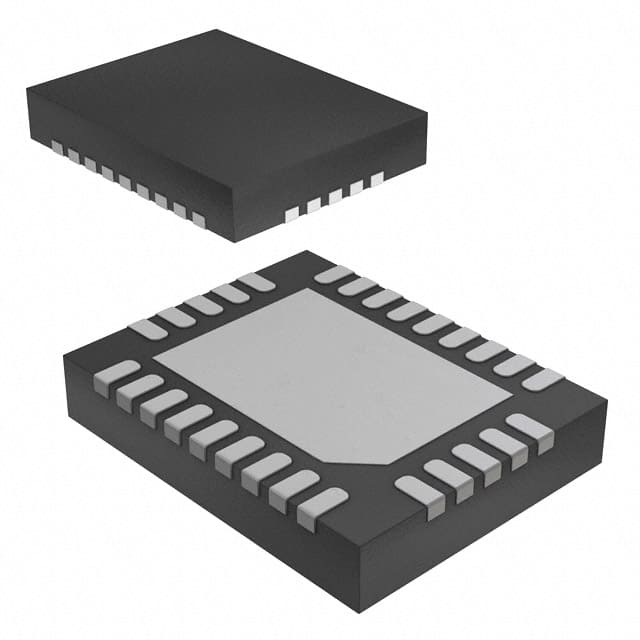

Packaged in a 28-pin VQFN-CLIP (4.5x3.5mm) with surface mount capability, the TPS51362RVER integrates essential components to minimize external part count. It includes features such as light-load efficiency, output discharge, power good indication, and soft-start adjustment. The operating temperature range is -10°C to 85°C (TA). Protection features like OCL, OVP, UVP, UVLO, and thermal shutdown are also incorporated for system reliability.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.80 | $1.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 3 V to 22 V.
The maximum output current is 10 A.
The output voltage range is 0.6 V to 2 V.
The switching frequency is 800 kHz.
The typical quiescent current is 0.0001 A.
The operating temperature range is -10°C to 85°C (TA).
The TPS51362RVER is available in a 28-VQFN-CLIP (4.5x3.5mm) package and a 28-VFQFN Exposed Pad package.
