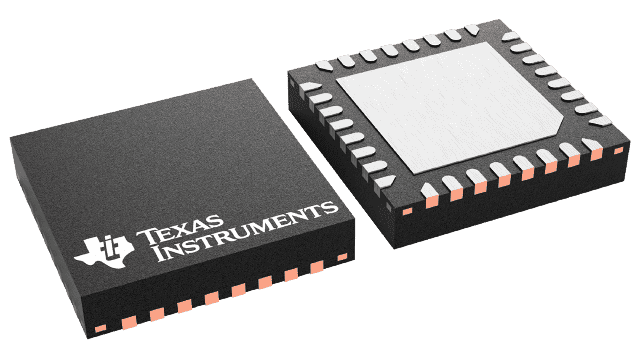

TPS51220ARSNR The Texas Instruments TPS51220ARSNR is a synchronous peak current mode buck controller designed for notebook power applications. It operates with an input voltage range of 4.5V to 32V and an output voltage range of 1V to 12V.
Mfr Part #:

TPS51220ARSNR

Available from 1 distributors
Mfr Name: NA
NA
The Texas Instruments TPS51220ARSNR is a synchronous peak current mode buck controller designed for notebook power applications. It operates with an input voltage range of 4.5V to 32V and an output voltage range of 1V to 12V.
✓ Total Stock: 58 pcs

TPS51220ARSNR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
PROSOFT ELECTRONICS ✓
Non-Authorised Inventory information
58 pcs
On Request
58 pcs On Request 1 On Request On Request 1631+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS51220ARSNR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Duty Cycle
Mounting Type
Operating Temperature Range
Output Current
Package / Case
Quiescent Current
Tape & Reel
View Similar Products (0)

TPS51220ARSNR Description

Short technical summary and product information.

The TPS51220ARSNR from Texas Instruments is a high-performance synchronous buck controller. It is engineered for notebook system power and point-of-load applications, offering a wide input voltage range from 4.5V to 32V and supporting output voltages from 1V to 12V.



This controller features a fixed-frequency PWM operation with a selectable 200-kHz to 1-MHz frequency. It supports D-CAP and current mode control, providing flexibility for various design requirements. Key electrical characteristics include a maximum output current of 20A, a typical quiescent current of 0.0013A, and a maximum duty cycle of 99%.



The TPS51220ARSNR is housed in a QFN-32 package and is designed for surface mount applications. It operates within a temperature range of -40°C to 85°C. The controller includes features such as selectable light load operation, programmable droop compensation, and adjustable soft start.



Protective features include Overcurrent Limit (OCL), Overvoltage Protection (OVP), Undervoltage Protection (UVP), and Undervoltage Lockout (UVLO), with an option to disable OVP. It also incorporates thermal shutdown and an output discharge function, which can also be disabled.

TPS51220ARSNR Quick Information

Product Type: DC DC Switching Controller
Canonical Name: TPS51220A Synchronous Buck Controller
Subcategory: Power Management ICs

TPS51220ARSNR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS51220ARSNR Features

  • Synchronous peak current mode buck controller.
  • Wide 4.5V to 32V input voltage range.
  • Output voltage adjustable from 1V to 12V.
  • Supports D-CAP and current mode control.
  • QFN-32 package for surface mount applications.

TPS51220ARSNR Applications

  • Ideal for notebook computer systems.
  • Suitable for system and I/O bus power.
  • Used for point of load in LCD TVs.
  • Applicable in MFP devices.

TPS51220ARSNR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of the TPS51220ARSNR?

4.5V to 32V.

What is the output voltage range of the TPS51220ARSNR?

1V to 12V.

What is the maximum output current of the TPS51220ARSNR?

20A.

What is the package type of the TPS51220ARSNR?

QFN-32.

What is the operating temperature range of the TPS51220ARSNR?

-40°C to 85°C.

What is the switching frequency range of the TPS51220ARSNR?

200kHz to 1MHz.

What control mode does the TPS51220ARSNR use?

D-CAP current mode.
