Mfr Part #:

TPS51216RUKR

Mfr Name: NA

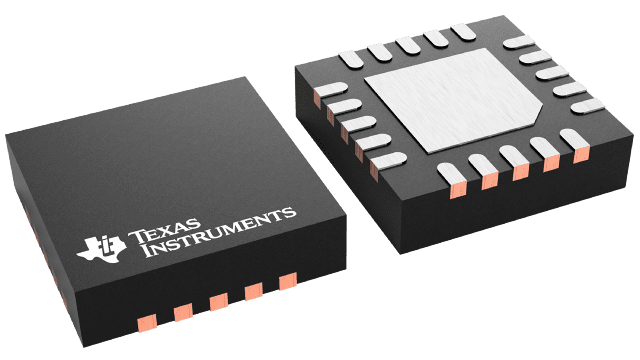

The Texas Instruments TPS51216RUKR is a complete power solution for DDR2, DDR3, and DDR3L memory systems. It integrates a synchronous buck controller and a 2-A LDO with a buffered reference.

✓ Total Stock: 50 pcs

TPS51216RUKR Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
PROSOFT ELECTRONICS ✓ Non-Authorised Inventory information	50 pcs On Request	50 pcs	On Request	1	On Request	On Request	08+	On Request	On Request

TPS51216RUKR Specifications Quick View

Most important parameters for selection – full specs in datasheet.

SELECT ALL

Category	New Products
Manufacturer Name	NA
Input Voltage	3 V to 28 V
Mounting Type	Surface Mount
Number of Pins	20
Operating Temperature	-40°C to 85°C
Output Voltage	0.7 V to 1.8 V
Package / Case	WQFN

View Similar Products (0)

TPS51216RUKR Description

Short technical summary and product information.

The TPS51216RUKR from Texas Instruments is designed to provide a comprehensive power supply for DDR2, DDR3, and DDR3L memory systems, optimizing for cost and space. It features a synchronous buck controller for VDDQ and a 2-A sink/source tracking LDO for VTT, along with a low-noise buffered reference (VTTREF).

This IC employs D-CAP mode with selectable switching frequencies of 300 kHz or 400 kHz for fast transient response and ease of use. The VTTREF accurately tracks VDDQ/2, and the VTT LDO can handle 2-A peak currents, requiring minimal external capacitance. The device supports flexible power state control, including high-Z state in S3 and soft-off in S4/S5 states.

Protection features include programmable Overcurrent Limit (OCL), Overvoltage Protection (OVP), Undervoltage Protection (UVP), and Undervoltage Lockout (UVLO), along with thermal shutdown. The TPS51216RUKR is available in a 20-pin, 3 mm x 3 mm WQFN package and operates over an ambient temperature range of -40°C to 85°C.

Applications include DDR2/DDR3/DDR3L memory power supplies and SSTL_18, SSTL_15, SSTL_135, and HSTL termination.

TPS51216RUKR Quick Information

Product Type: DDR Memory Power Solution

Canonical Name: TPS51216 DDR Memory Power Solution Synchronous Buck Controller, 2-A LDO, Buffered Reference

Subcategory: Synchronous Buck Controller

TPS51216RUKR Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

TPS51216RUKR Features

Complete DDR memory power solution.
Synchronous buck controller and 2-A LDO.
0.7V to 1.8V output voltage range.
3V to 28V input voltage range.
Fast transient response with D-CAP mode.

TPS51216RUKR Applications

DDR2/DDR3/DDR3L memory power supplies.
SSTL_18, SSTL_15, SSTL_135 termination.
HSTL termination applications.
Low noise buffered reference output.

TPS51216RUKR FAQs

7 frequently asked questions generated from this part’s specifications.

What is the input voltage range of the TPS51216RUKR?

The input voltage range is 3 V to 28 V.

What is the output voltage range of the TPS51216RUKR?

The output voltage range is 0.7 V to 1.8 V.

What is the operating temperature range of the TPS51216RUKR?

The operating temperature range is -40°C to 85°C.

What package does the TPS51216RUKR come in?

The TPS51216RUKR comes in a 20-pin WQFN package measuring 3 mm x 3 mm.

What is the VREF accuracy of the TPS51216RUKR?

The VREF accuracy is 0.8%.

What is the peak LDO current of the TPS51216RUKR?

The peak LDO sink and source current is 2 A.

What switching frequencies are available on the TPS51216RUKR?

The switching frequency is selectable between 300 kHz and 400 kHz.
