| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Clock Sync | |
| Control Features | |
| Duty Cycle (Max) | |
| Frequency | |
| Function | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Configuration | |
| Output Phases | |
| Output Type | |
| Supplier Device Package | |
| Supplier Package | |
| Synchronous Rectifier | |
| Topology | |
| Voltage |
The Texas Instruments TPS40210SHKK is a high-temperature, wide input range, current-mode boost controller. It is suitable for Boost, Flyback, and SEPIC applications, offering flexibility for power management designs.
This controller features a wide input operating voltage range from 5.5 V to 52 V and can provide an output voltage up to 300 V. Key electrical characteristics include fixed-frequency current-mode control, internal slope compensation, and a programmable closed-loop soft start. It also supports external synchronization and has a low-current disable function.

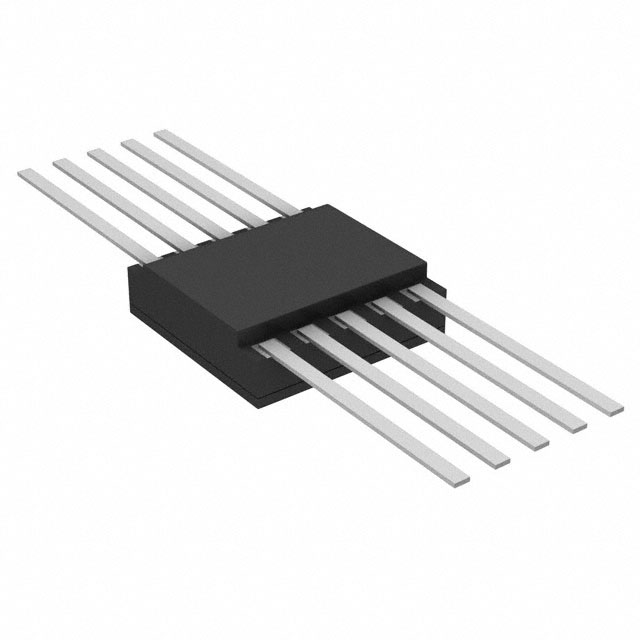

The TPS40210SHKK is designed for demanding environments, with an operating temperature range of -55°C to 210°C. It is available in a 10-CFP package and is designed for surface mount applications, making it suitable for down-hole drilling and other high-temperature environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $113.62 | $113.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 5.5 V to 52 V.
The operating temperature range is -55°C to 210°C.
It supports Boost, Flyback, and SEPIC topologies.
The package is a 10-CFP, suitable for surface mounting.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
