TPS3813K33DBVT
Texas Instruments

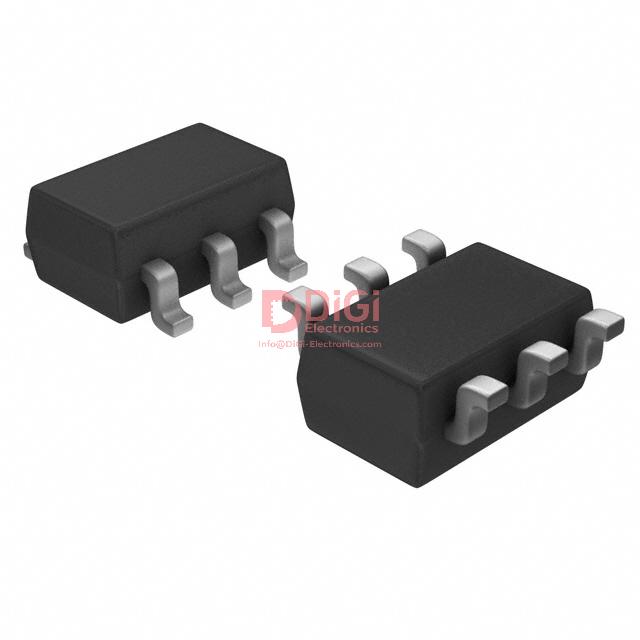

The Texas Instruments TPS3813K33DBVT is a voltage supervisor IC with a 2.93V threshold and active-low reset output. It is supplied in a SOT-23-6 package.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 2019+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Reset | |
| Reset Timeout | |
| Supplier Device Package | |
| Type | |
| Voltage |
The Texas Instruments TPS3813K33DBVRG4 is a single-channel supervisor IC designed for power-on reset and simple reset applications. It monitors a single voltage threshold of 2.93V and provides an active-low reset output with an open-drain or open-collector configuration. The reset timeout is specified as a minimum of 20ms.
This supervisor operates within a temperature range of -40°C to 85°C (TA) and is available in a surface-mount SOT-23-6 package. Its primary function is to ensure system stability by monitoring voltage levels and initiating a reset when necessary. The device is suitable for various embedded systems requiring reliable power-on sequencing and reset management.
Key electrical characteristics include its single voltage monitoring capability and the specific 2.93V threshold. The open-drain output allows for flexible interfacing with other system components. The compact SOT-23-6 package makes it ideal for space-constrained designs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
2.93V
20ms minimum
-40°C to 85°C
SOT-23-6, surface mount
1
Open drain or open collector, active low
