| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10,677 pcs
|
10677 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
8,162 pcs
|
8162 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
3,163 pcs
|
3163 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 21+ | On Request | On Request | |
|
2,186 pcs
|
2186 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,149 pcs
|
1149 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Hysteresis | |
| Lead Spacing | |
| Mounting Type | |
| Number of Elements | |
| Operating Temperature | |
| Output Type | |
| Propagation Delay (Max) | |
| Quiescent Current | |
| Supplier Device Package | |
| Type | |
| Voltage |

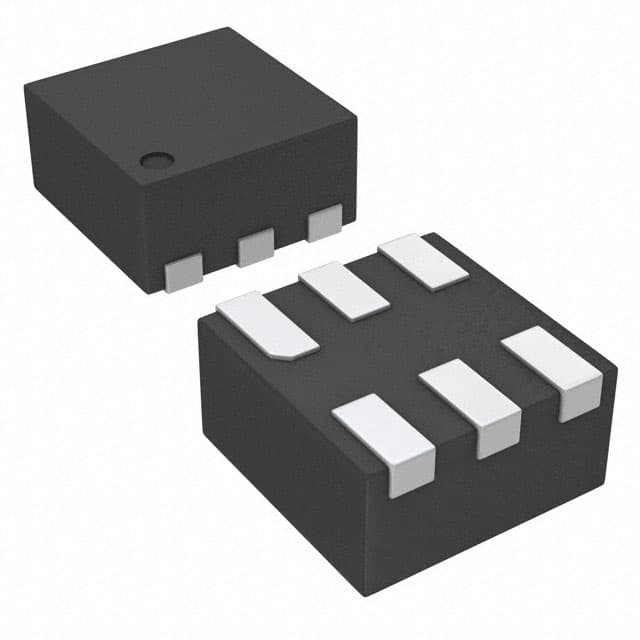

The Texas Instruments TPS3700DSER is a high-voltage window voltage detector suitable for overvoltage and undervoltage monitoring applications. It features a wide supply voltage range of 1.8V to 18V, making it versatile for various power management systems.
This comparator IC offers an adjustable threshold voltage down to 400mV with high accuracy of 1.0% over temperature. It includes two independent comparators with an internal 400mV reference and open-drain outputs rated to 18V. The device has a low quiescent current of 5.5µA typical and internal hysteresis of 5.5mV typical.
The TPS3700DSER is available in a 6-WSON (1.5x1.5 mm) package and operates within a temperature range of -40°C to 125°C. Its surface mount type and compact WSON package make it suitable for space-constrained designs.
This device can function as a window voltage detector or as two independent voltage supervisors, providing flexibility in system design for monitoring critical voltage levels.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.88 | $0.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.8V to 18V.
The adjustable threshold voltage is down to 400mV.
The reset threshold accuracy is 1.0% over temperature and 0.25% typical.
The operating temperature range is -40°C to 125°C.
It has open-drain outputs.
The typical quiescent current is 5.5µA.
The package type is 6-WSON (1.5x1.5) or 6-WFDFN.
