| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
95,158 pcs
|
95158 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Voltages Monitored | |
| Operating Temperature | |
| Output | |
| Reset | |
| Reset Timeout | |
| Supplier Device Package | |
| Supply Current | |
| Type | |
| Voltage |
The Texas Instruments TPS3103E15DBVTG4 is a supervisory circuit designed for circuit initialization and timing supervision, primarily for DSP and processor-based systems. It features a precision supply voltage supervision range with a threshold voltage of 1.434V and a high trip-point accuracy of 0.75%.
This device offers a reset timeout of 65ms and can monitor a single voltage. The output type is Open Drain or Open Collector, with an active-low reset signal. It operates within a temperature range of -40°C to 85°C (TJ).

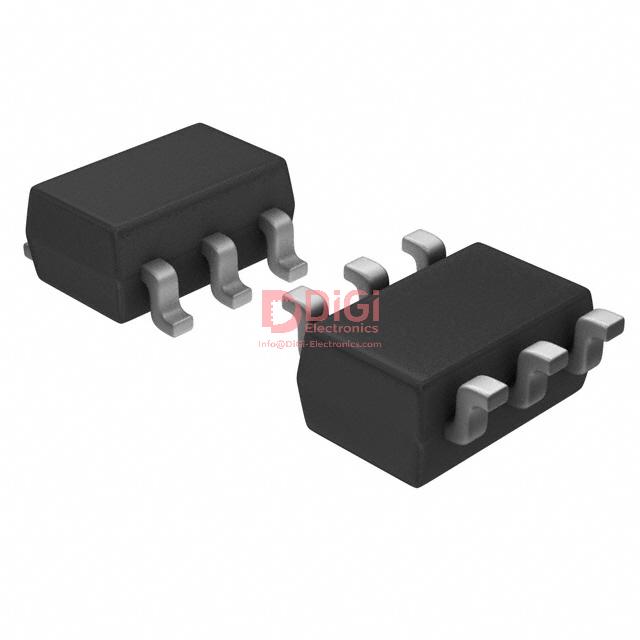

The TPS3103E15DBVTG4 is suitable for applications using low-power DSPs, microcontrollers, or microprocessors, as well as portable and battery-powered equipment. Its compact SOT-23-6 package and surface mount type make it ideal for space-constrained designs.
Key electrical characteristics include a typical supply current of 1.2 μA and the ability to define reset with input voltages as low as 0.4V. The power-on reset generator provides a delay time of 130ms.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The threshold voltage is 1.434V.
The reset timeout is a minimum of 65ms.
The operating temperature range is -40°C to 85°C (TJ).
It is in a SOT-23-6 package.
The typical supply current is 1.2μA.
The trip-point accuracy is 0.75%.
The power-on reset delay time is 130ms.
