| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

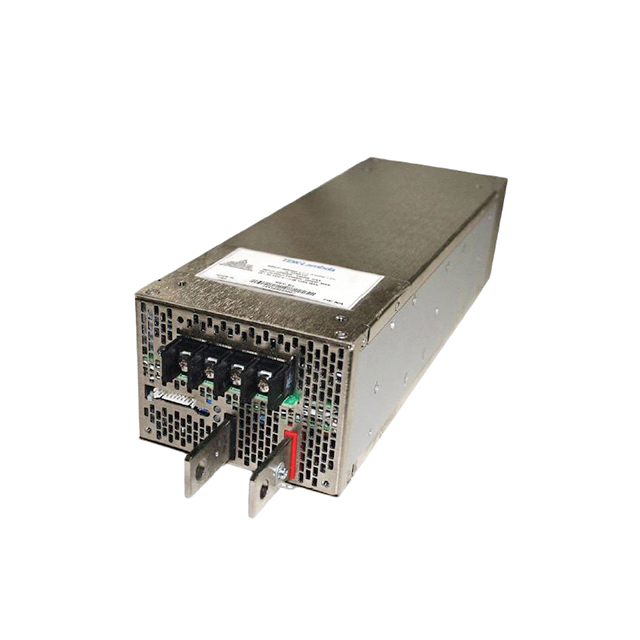

The TDK Corporation TPS3000-48 is a front-end AC/DC converter with a power rating of 3000W and a single 48V output. It operates with an input voltage range of 350 to 528 VAC (3 Phase) and achieves an efficiency of 92.5%.
Key features include adjustable output, load sharing, Power Factor Correction (PFC), PMBus™ communication, remote on/off control, remote sense, and a standby output. The converter provides 3 kV of isolation and is suitable for ITE (Commercial) applications.
Designed for rack mounting, the TPS3000-48 has dimensions of 324.0mm x 107.0mm x 84.4mm. It operates within a temperature range of -40°C to 70°C with derating. The current output is 66.7A.
The TPS3000-48 accepts a three-phase input of 350 to 528 VAC and provides a single adjustable 48V DC output.
The unit ships in bulk packaging and utilizes a rack mount mechanical configuration.
The converter functions reliably between -40°C and 70°C, requiring output derating when temperatures exceed 70°C.
The power converter achieves a peak efficiency of 92.5 percent under standard operating conditions.
Yes, the device incorporates a 3 kV voltage isolation barrier between input and output stages.
The converter integrates a PMBus interface for advanced digital monitoring and control capabilities.
