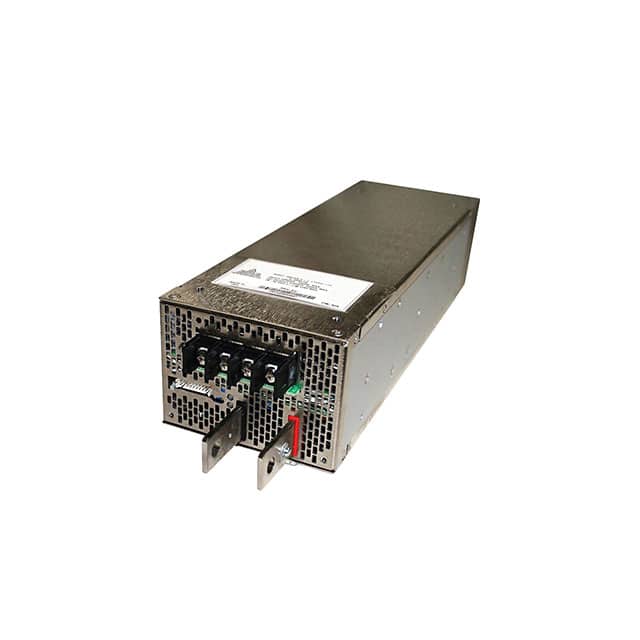

The TDK Corporation TPS3000-24 is a high-power AC/DC converter designed for industrial and commercial applications. This front-end converter delivers a 24V output with a substantial 3000W power rating and a 125A current capacity.
Key electrical specifications include an efficiency of 92.5% and features such as Adjustable Output, Load Sharing, PFC, PMBus™, Remote On/Off, Remote Sense, and a Standby Output. The device operates across a wide temperature range of -40°C to 70°C with derating.
Designed for easy integration, the TPS3000-24 features a Rack Mount type. Its dimensions are 324.0mm in length, 107.0mm in width, and 84.4mm in height. The converter is approved by CE for compliance in relevant markets.
This model is suitable for ITE (Commercial) applications and offers robust performance for demanding power supply needs.
The TPS3000-24 provides a single 24V output at 125A, with a power rating of 3000W.
The TPS3000-24 has an efficiency rating of 92.5%.
The TPS3000-24 operates from -40°C to 70°C with derating.
The TPS3000-24 is designed for rack mount installation.
The TPS3000-24 includes adjustable output, load sharing, PFC, PMBus, remote on/off, remote sense, and standby output.
The TPS3000-24 measures 324.0mm x 107.0mm x 84.4mm (12.76" x 4.21" x 3.32").
The TPS3000-24 is intended for ITE (commercial) applications.
