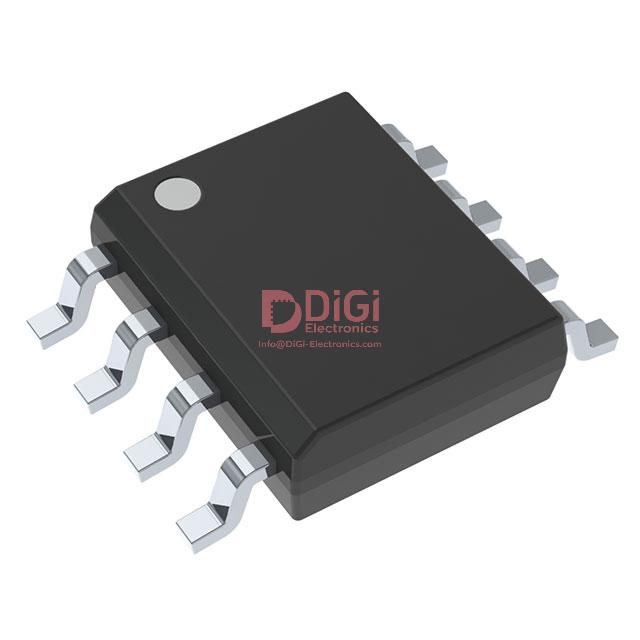

The TPS2814D from Texas Instruments is a dual high-speed MOSFET driver designed to deliver peak currents of 2A into capacitive loads. This device is part of the TPS28xx series, known for minimizing shoot-through current and consuming low supply current.
Key electrical specifications include a supply voltage range of 4V to 14V, with a peak output current capability of 2A at 14V. It features rise and fall times of 25ns and a propagation delay of 40ns, making it suitable for high-speed switching applications. The device operates with logic voltages between 1V and 4V.
Packaged in an 8-SOIC surface-mount package, the TPS2814D is designed for low-side driving configurations. It supports both inverting and non-inverting input types, providing flexibility in control. The operating temperature range is -40°C to 125°C (TA), ensuring reliable performance in various environmental conditions.
This gate driver is suitable for applications requiring efficient control of MOSFETs in power management systems. Its robust design and performance characteristics make it a valuable component for engineers designing high-speed switching circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.01 | $2.01 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TPS2814D operates with a supply voltage range of 4V to 14V.
The TPS2814D can deliver a peak output current of 2A.
The TPS2814D has an operating temperature range of -40°C to 125°C (TA).
The TPS2814D is available in an 8-SOIC package.
The rise and fall times for the TPS2814D are 25ns.
