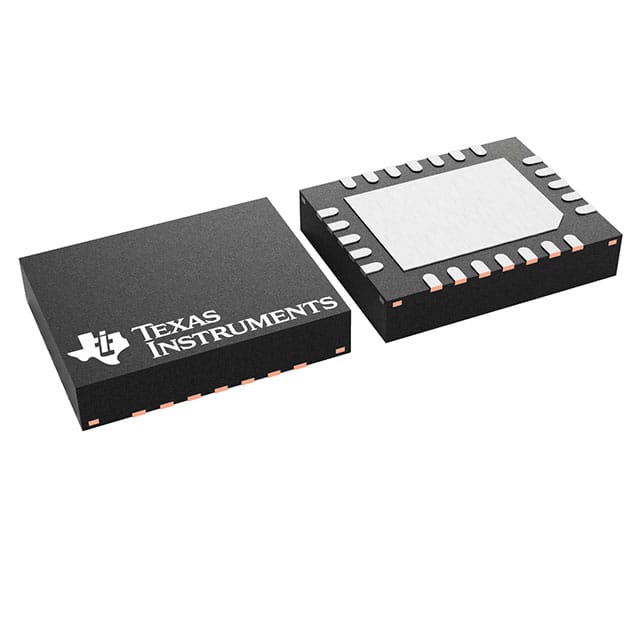

The Texas Instruments TPS272C45DRHFR is a dual-channel smart high-side switch suitable for industrial applications. It operates over a wide DC voltage range from 6V to 36V, with a typical on-resistance of 45mΩ. This device features adjustable current limiting, with a maximum limit of 5.8A and an adjustable range from 0.7A to 4A.
Key internal features include current sense/monitor capabilities, inductive load compatibility, inrush current control, short circuit protection, thermal shutdown, and under-voltage lockout (UVLO). The switch type is general purpose with an N-channel output configuration, operating as a high-side switch. The interface is a simple On/Off control.
Packaged in a 24-VQFN (5x4mm) surface-mount format, the TPS272C45DRHFR is designed for efficient integration into 24V industrial systems. Its robust protection features make it suitable for driving various loads including inductive, capacitive, and resistive types, while ensuring system reliability.
The device is rated for an operating temperature range of -40°C to 125°C (TJ). It also includes features like load discharge and slew rate control, enhancing its utility in demanding power management scenarios.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.64 | $2.64 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is from 6 V to 36 V.
The typical on-resistance is 45 mOhm.
The maximum continuous current is 3 A.
The current limit is adjustable from 0.7 A to 5.8 A.
Fault protection includes adjustable current limiting, over temperature, over voltage, and UVLO.
The operating temperature range is -40°C to 125°C (TJ).
It is supplied in a 24-VQFN (5x4) package, which is a 24-VFQFN exposed pad type for surface mounting.
