TPS259460ARPWR The Texas Instruments TPS259460ARPWR is an electronic fuse (eFuse) IC designed for power protection. It operates within a wide input voltage range and offers adjustable current limiting.
Mfr Part #:

TPS259460ARPWR

Available from 2 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS259460ARPWR is an electronic fuse (eFuse) IC designed for power protection. It operates within a wide input voltage range and offers adjustable current limiting.
✓ Total Stock: 5,757 pcs
$ Price Range: $0.51

TPS259460ARPWR Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Fe Components ✓
Non-Authorised Inventory information
5,741 pcs
On Request
5741 pcs On Request 1 On Request On Request On Request On Request On Request
Rayichip ✓
Non-Authorised Inventory information
16 pcs
On Request
16 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS259460ARPWR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Accuracy
Current
Function
Mounting Type
Operating Temperature
Sensing Method
Supplier Device Package
Voltage
View Similar Products (0)

TPS259460ARPWR Description

Short technical summary and product information.

The Texas Instruments TPS259460ARPWR is an electronic fuse (eFuse) integrated circuit designed for robust power protection. It supports a wide input voltage range from 2.7V to 23V, with an absolute maximum continuous voltage of 28V. The device features a current rating of 5.5A and an adjustable current limit from 0.5A to 6A.



Key electrical characteristics include a low typical on-resistance of 28.3mΩ and a low quiescent current of 0.428µA typical. The eFuse offers adjustable features such as Overvoltage Lockout (OVLO), current limit, and soft start, providing flexibility in system design. It also includes essential protection features like overcurrent protection, overvoltage protection, and thermal shutdown.

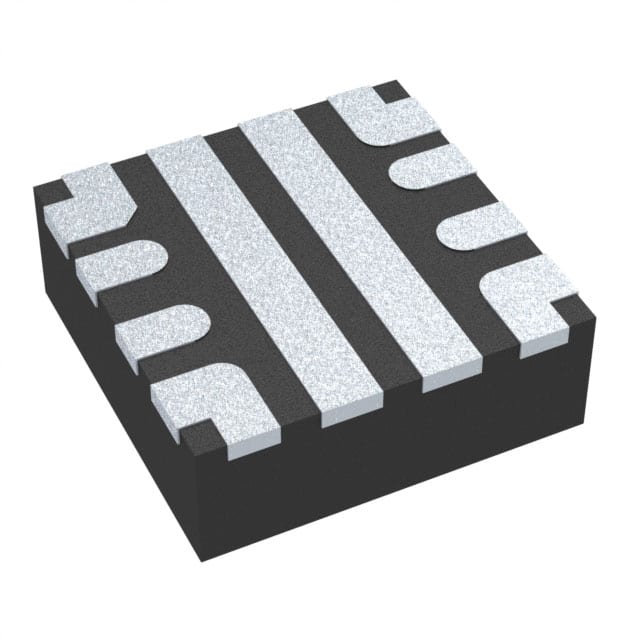

Packaged in a compact 10-VQFN-HR (2x2 mm) surface-mount package, the TPS259460ARPWR is suitable for space-constrained applications. Its operating temperature range is -40°C to 125°C (TJ). The device supports bi-directional current flow during the ON state and provides reverse current blocking during the OFF state, enhancing system safety and reliability.

TPS259460ARPWR Quick Information

Product Type: eFuse
Canonical Name: Texas Instruments TPS259460ARPWR eFuse
Subcategory: Power Protection Switches & Controllers

TPS259460ARPWR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS259460ARPWR Estimated Pricing

Qty Low High
1+ $0.51 $0.51

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS259460ARPWR Features

  • Wide 2.7V to 23V input voltage range.
  • 5.5A continuous current rating.
  • Low 28.3mΩ typical on-resistance.
  • Adjustable current limit and OVLO.
  • Compact 10-VQFN-HR package.

TPS259460ARPWR Applications

  • Provides robust power protection.
  • Suitable for adjustable current limits.
  • Enables flexible system voltage.
  • Supports bi-directional current flow.
  • Ideal for space-constrained designs.

TPS259460ARPWR FAQs

7 frequently asked questions generated from this part’s specifications.
What is the input voltage range of TPS259460ARPWR?

The input voltage range is 2.7V to 23V.

What is the current rating of TPS259460ARPWR?

The current rating is 5.5A.

What is the typical on-resistance of the TPS259460ARPWR?

The typical on-resistance is 28.3mΩ.

What is the quiescent current of the device?

The typical quiescent current is 0.428µA.

What is the operating temperature range?

The operating temperature range is -40°C to 125°C.

What package options are available for TPS259460ARPWR?

Available in 10-VQFN-HR and 10-VFQFN packages, 2mm x 2mm.

What protection features does the TPS259460ARPWR offer?

It provides overcurrent protection via current limiting and overvoltage protection with cut-off response. Fault response includes auto-retry and latch-off.
