TPS25810RVCR The Texas Instruments TPS25810RVCR is a USB Type-C source controller and 3A power switch. It operates within a 4.5V to 6.5V range and features a low 34mΩ typical on-resistance.
Mfr Part #:

TPS25810RVCR

Available from 4 distributors
Mfr Name: Texas Instruments
Texas Instruments
The Texas Instruments TPS25810RVCR is a USB Type-C source controller and 3A power switch. It operates within a 4.5V to 6.5V range and features a low 34mΩ typical on-resistance.
✓ Total Stock: 94,458 pcs
$ Price Range: $0.58

TPS25810RVCR Available from 4 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Romaks Technologies ✓
Non-Authorised Inventory information
90,400 pcs
On Request
90400 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,054 pcs
On Request
2054 pcs On Request 1 On Request On Request 1627+PBF On Request On Request
Xingangxin ✓
Non-Authorised Inventory information
1,874 pcs
On Request
1874 pcs On Request 1 On Request On Request On Request On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
130 pcs
On Request
130 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

TPS25810RVCR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Applications
Lead Spacing
Mounting Type
Operating Temperature
Quiescent Current
Supplier Device Package
Supplier Package
Tape & Reel
Voltage
View Similar Products (0)

TPS25810RVCR Description

Short technical summary and product information.

The TPS25810RVCR from Texas Instruments is a specialized USB Type-C source controller and a 3A power switch designed for USB applications. This integrated circuit supports USB Type-C Rev. 1.2 compliance, offering features such as connector attach/detach detection and programmable port power management.

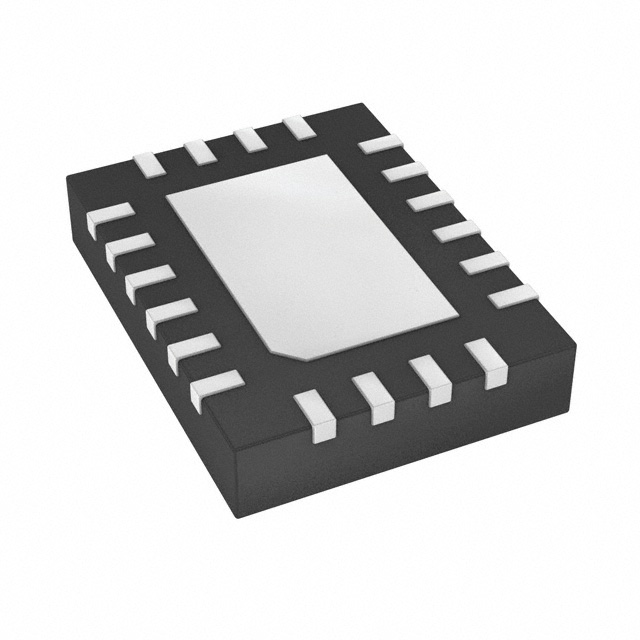

With an operating voltage range of 4.5V to 6.5V, the TPS25810RVCR boasts a low typical on-resistance of 34mΩ for efficient power delivery. It also features a low quiescent current of 0.7µA when the port is unattached. The device is housed in a 20-WQFN package and is designed for surface mount applications.



Key specifications include a current limit of 1.7A/3.4A and an operating temperature range from -40°C to 125°C. This component is suitable for various USB-based systems requiring robust power control and interface management.

TPS25810RVCR Quick Information

Product Type: USB Type-C Controller
Canonical Name: TPS25810RVCR USB Type-C Source Controller and 3A Power Switch
Subcategory: Specialized Interface ICs

TPS25810RVCR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

TPS25810RVCR Estimated Pricing

Qty Low High
1+ $0.58 $0.58

Estimated market price range - modelled values for guidance only, not live distributor offers.

TPS25810RVCR Features

  • USB Type-C source controller and 3A power switch.
  • Wide 4.5V to 6.5V operating voltage range.
  • Low 34mΩ typical MOSFET on-resistance.
  • Supports USB Type-C Rev. 1.2 standards.
  • Operates from -40°C to 125°C.

TPS25810RVCR Applications

  • Ideal for USB power delivery systems.
  • Suitable for Type-C port control.
  • Used in consumer electronics devices.
  • Enables efficient power management.

TPS25810RVCR FAQs

5 frequently asked questions generated from this part’s specifications.
What is the operating voltage range for the TPS25810RVCR?

The operating voltage range is 4.5 V to 6.5 V.

What is the typical on-resistance of the TPS25810RVCR?

The typical on-resistance is 34 mΩ.

What is the operating temperature range for this component?

The operating temperature range is -40 °C to 125 °C.

What package type is the TPS25810RVCR supplied in?

It is supplied in a 20-WQFN package.

Is the TPS25810RVCR RoHS compliant?

Yes, it is RoHS3 Compliant.
