| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30,133 pcs
|
30133 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,289 pcs
|
3289 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request | |
|
1,312 pcs
|
1312 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
42 pcs
|
42 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Features | |
| Internal Switch(s) | |
| Mounting Type | |
| Number of Channels | |
| Operating Temperature | |
| Programmable Features | |
| Supplier Device Package | |
| Type | |
| Voltage |

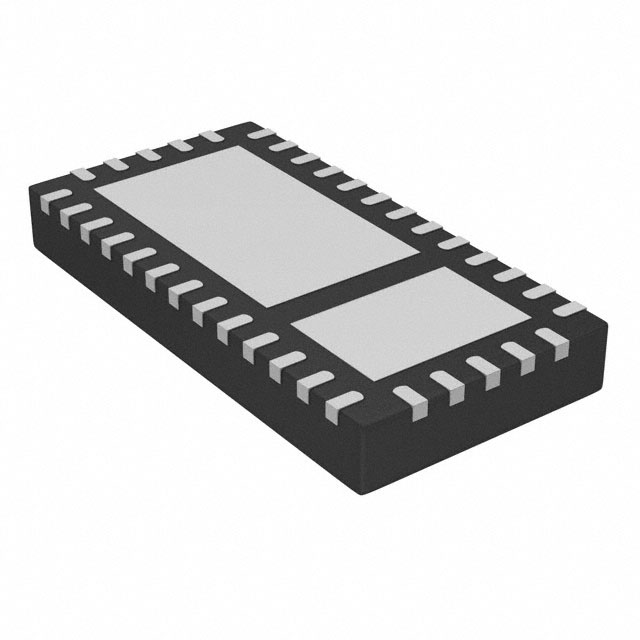

The Texas Instruments TPS24751RUVR is an active hot swap controller IC housed in a 36-VQFN package. It supports an input voltage range of 2.5V to 18V and can handle continuous currents up to 12A. The device features a low typical on-resistance of 3mΩ.
Key features include adjustable overvoltage lockout (OVLO), adjustable current limit, adjustable soft start, current monitoring, a fault output, and a power good signal. It also provides reverse current blocking when off, short-circuit protection, and thermal shutdown. The operating temperature range is -40°C to 85°C.
This controller is suitable for general-purpose applications and offers programmable features such as circuit breaker, current limit, fault timeout, OVP, slew rate, and UVLO. The device has a typical quiescent current of 0.001A and a maximum of 0.0014A. The package is a 36-VFQFN exposed pad, suitable for surface mounting.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.90 | $1.90 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.5V to 18V.
The TPS24751RUVR can handle a continuous current of up to 12A.
The typical on-resistance is 3 mΩ.
Key protection features include auto-retry, thermal limit, adjustable current limit, adjustable OVLO, adjustable UVLO, and short-circuit protection.
The operating temperature range is -40°C to 85°C.
The TPS24751RUVR is available in a 36-VQFN (7x3.5) package suitable for surface mounting.
